27. First Derivative#
This exercise covers the following aspects:
Calculation of numerical first derivative
Comparison with analytical solution
Dependence of error on space increment
Note: Alternative solution added that looks at the convergence by decreasing the spatial increment dx (May 12, 2020)
import matplotlib.pyplot as plt
import numpy as np
We initialize a space-dependent sin function
\begin{equation} f(x)= \sin (k x) \end{equation}
where the wavenumber k is
\begin{equation} k = \dfrac{2 \pi}{\lambda} \end{equation}
and \(\lambda\) is wavelength.
# Initial parameters
xmax = 10.0 # physical domain (m)
nx = 200 # number of samples
dx = xmax / (nx - 1) # grid increment dx (m)
x = np.linspace(0, xmax, nx) # space coordinates
# Initialization of sin function
l = 40 * dx # wavelength
k = 2 * np.pi / l # wavenumber
f = np.sin(k * x)

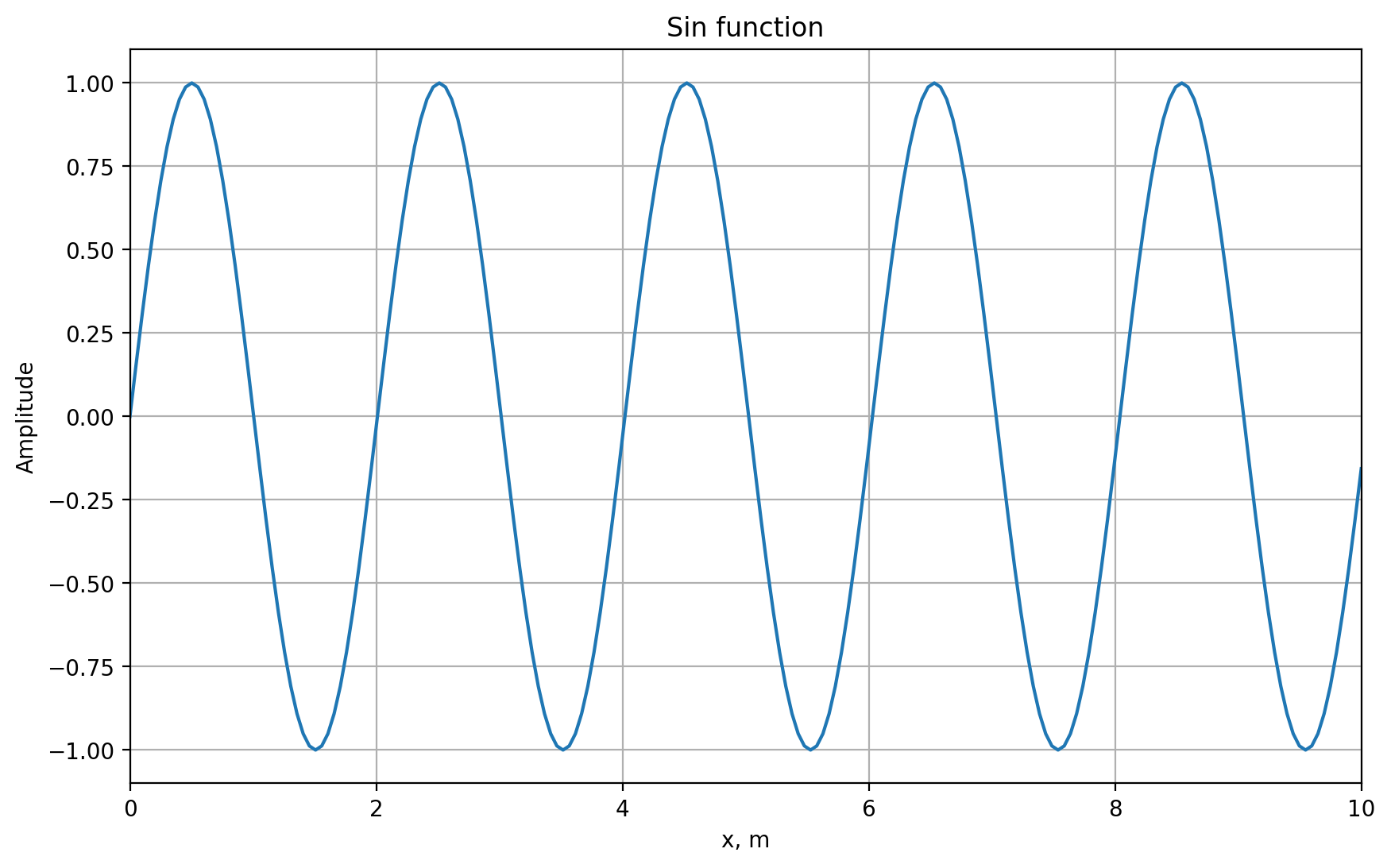

# Plot sin function
plt.figure(figsize=(10, 6))
plt.plot(x, f)
plt.title("Sin function")
plt.xlabel("x, m")
plt.ylabel("Amplitude")
plt.xlim((0, xmax))
plt.grid()
plt.show()

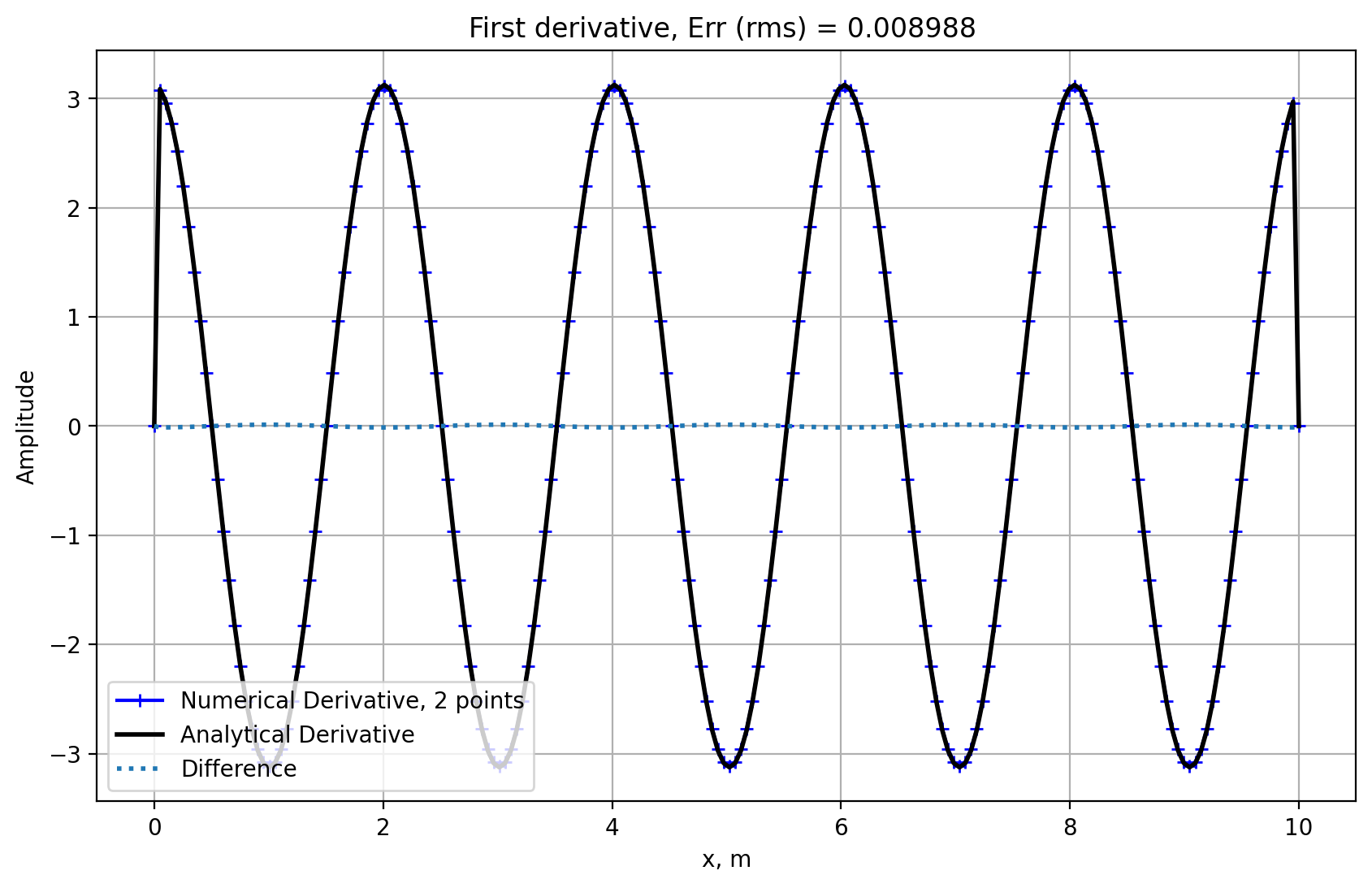

In the cell below we calculate the central finite-difference derivative of f(x) using two points
\begin{equation} f^{\prime}(x)=\dfrac{f(x+dx)-f(x-dx)}{2dx} \end{equation}
and compare with the analytical derivative
\begin{equation} f^{\prime}(x) = k \cos(k x) \end{equation}
# First derivative with two points
# Initiation of numerical and analytical derivatives
nder = np.zeros(nx) # numerical derivative
ader = np.zeros(nx) # analytical derivative
# Numerical derivative of the given function
for i in range(1, nx - 1):
nder[i] = (f[i + 1] - f[i - 1]) / (2 * dx)
# Analytical derivative of the given function
ader = k * np.cos(k * x)
# Exclude boundaries
ader[0] = 0.0
ader[nx - 1] = 0.0
# Error (rms)
rms = np.sqrt(np.mean((nder - ader) ** 2))
# Plotting
# ----------------------------------------------------------------
plt.figure(figsize=(10, 6))
plt.plot(x, nder, label="Numerical Derivative, 2 points", marker="+", color="blue")
plt.plot(x, ader, label="Analytical Derivative", lw=2, ls="-", color="black")
plt.plot(x, nder - ader, label="Difference", lw=2, ls=":")
plt.title("First derivative, Err (rms) = %.6f " % (rms))
plt.xlabel("x, m")
plt.ylabel("Amplitude")
plt.legend(loc="lower left")
plt.grid()
plt.show()

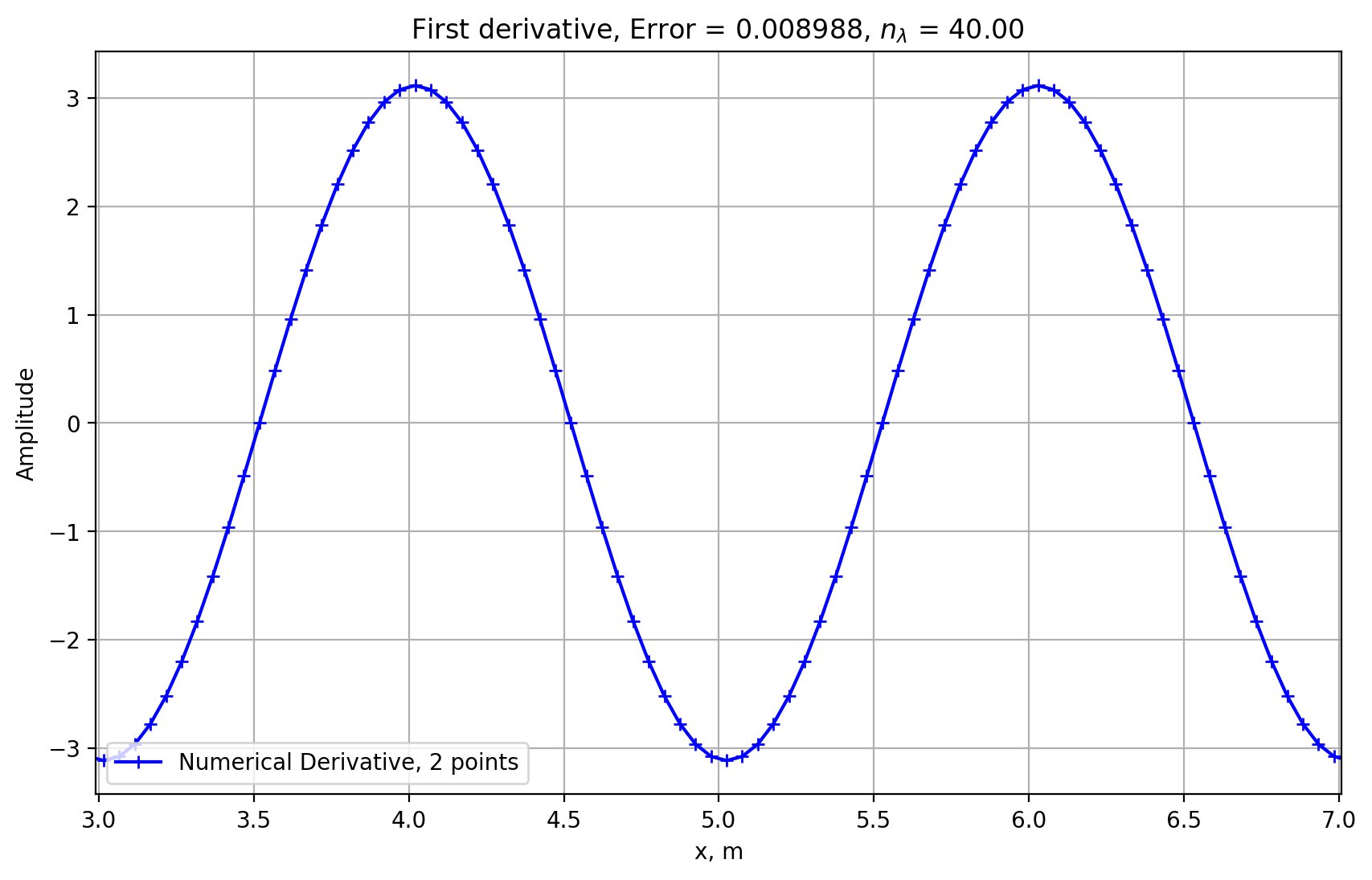

27.1. The concept of number of points per wavelength#
\begin{equation} n_\lambda = \dfrac{\lambda}{\mathrm{d}x} \end{equation}
How does the error of the numerical derivative change with the number of points per wavelength?
# Plotting number of points per wavelength
plt.figure(figsize=(10, 6))
plt.plot(x, nder, label="Numerical Derivative, 2 points", marker="+", color="blue")
plt.title(rf"First derivative, Error = {rms:.6f}, $n_\lambda$ = {l / dx:.2f} ")
plt.xlabel("x, m")
plt.ylabel("Amplitude")
plt.legend(loc="lower left")
plt.xlim((xmax / 2 - l, xmax / 2 + l))
plt.grid()
plt.show()
27.1.1. Investigate the error as a function of grid points per wavelength#
# Define a range of number of points per wavelength: [nmin=4,5,6 ... ,nmax=40]
# Loop over points, calculate corresponding wavelength and calculate error
# Initialize vectors
nmin = 3
nmax = 40
na = np.zeros(nmax - nmin + 1) # Vector with number of points per wavelength
err = np.zeros(nmax - nmin + 1) # Vector with error
j = -1 # array index
# Loop through finite-difference derivative calculation
for n in range(nmin, nmax + 1):
j = j + 1 # array index
na[j] = n
# Initialize sin function
l = na[j] * dx # wavelength
k = 2 * np.pi / l # wavenumber
f = np.sin(k * x)
# Numerical derivative of the sin function
for i in range(1, nx - 1):
nder[i] = (f[i + 1] - f[i - 1]) / (2 * dx)
# Analytical derivative of the sin function
ader = k * np.cos(k * x)
# Exclude boundaries
ader[0] = 0.0
ader[nx - 1] = 0.0
# Error (rms)
err[j] = np.sum((nder - ader) ** 2) / np.sum(ader**2) * 100
# ----------------------------------------------------------------

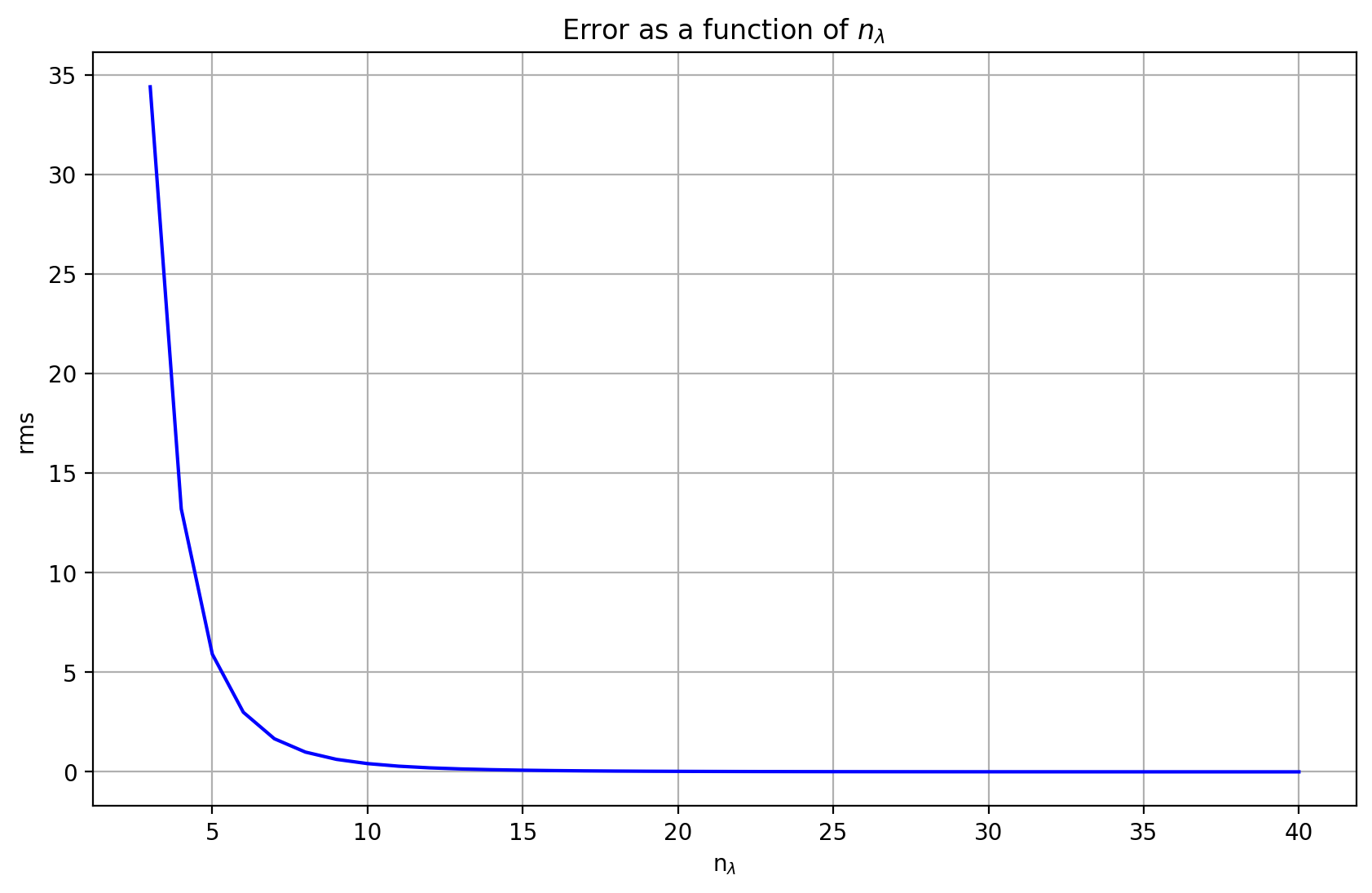

# Plotting error as function of number of points per wavelength
plt.figure(figsize=(10, 6))
plt.plot(na, err, ls="-", color="blue")
plt.title(r"Error as a function of $n_\lambda$ ")
plt.xlabel(r"n$_\lambda$")
plt.ylabel("rms ")
plt.grid()
plt.show()
Alternative Solution (as requested by several comments):
Let us fix the wavelength lambda and decrease the spatial increment \(dx\) and by that increasing the number of points per wavelength. To make it compatible with the Nyquist theorem we start the discretization close to the Nyquist wavelength \(\lambda_{Ny} = 2 dx\).
# Let us loop over number of points in the interval [5,100], 3 points corresponds to Nyquist wavelength
n1 = 5
n2 = 100
err = np.zeros(n2 - n1 - 1) # vector for error
dxa = np.zeros(n2 - n1 - 1) # vector for dx
npl = np.zeros(n2 - n1 - 1) # vector for number of points per lambda
ii = -1
for n in range(n1, n2 - 1):
ii = ii + 1
x = np.linspace(0, 2 * np.pi, n)
dx = x[1] - x[0]
f = np.sin(x)
df = np.cos(x) # Analytical derivative
dfn = np.zeros(n)
# Numerical derivative of the sin function
for i in range(1, n - 1):
dfn[i] = (f[i + 1] - f[i - 1]) / (2 * dx)
# Calculate error in the interval in which numerical derivative was calculated
err[ii] = (
np.sum((df[1 : n - 1] - dfn[1 : n - 1]) ** 2) / np.sum(df[1 : n - 1] ** 2) * 100
)
dxa[ii] = dx # dx
npl[ii] = 2 * np.pi / dx # number of points per wavelength
# ----------------------------------------------------------------
# Plotting error as function of dx
plt.figure(figsize=(10, 6))
plt.plot(dxa, err, ls="-", color="blue")
plt.title("Error as a function of $dx$ ")
plt.xlabel("dx")
plt.ylabel("Misfit energy (%) ")
plt.grid()
plt.show()
# ----------------------------------------------------------------

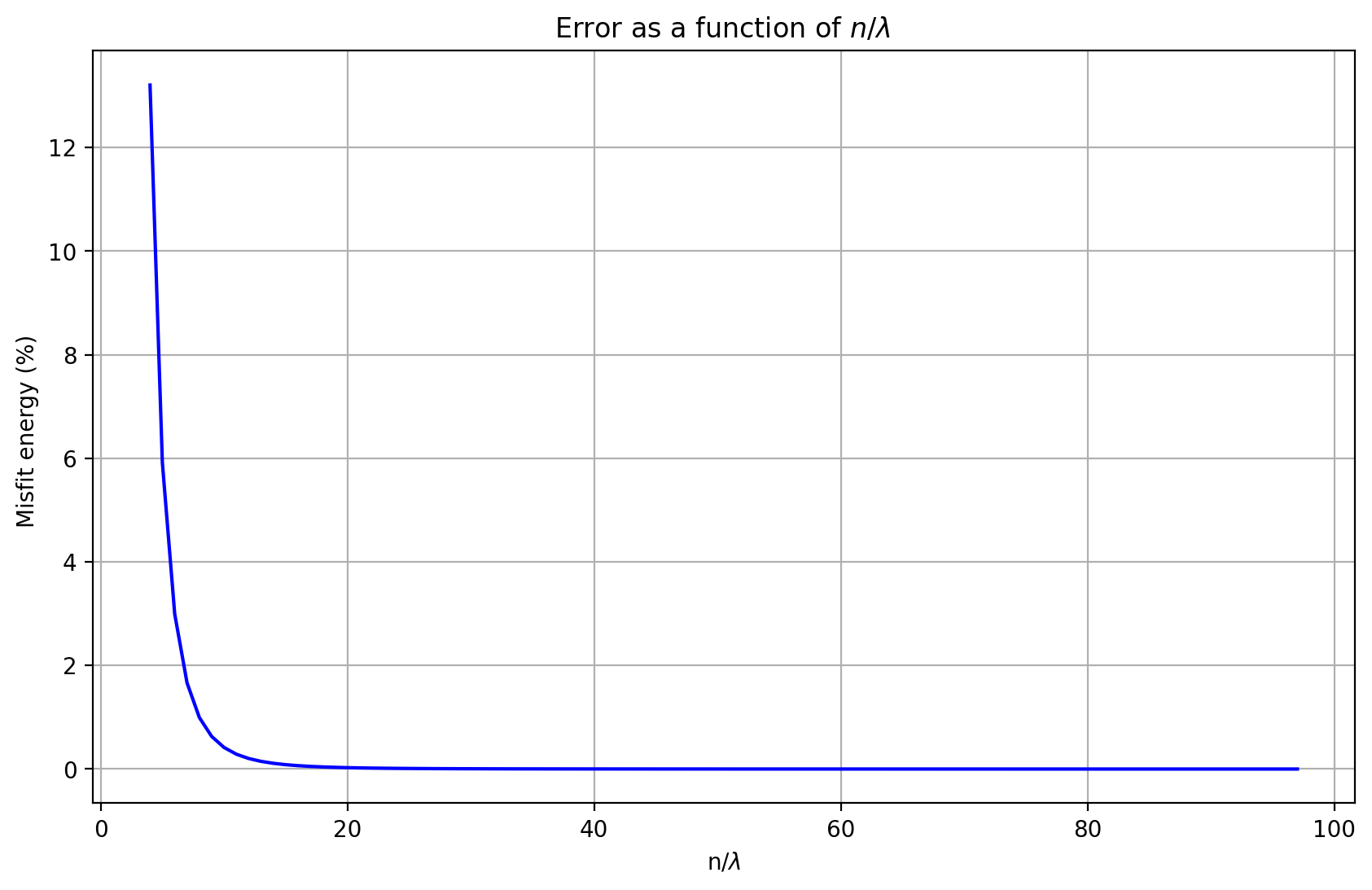

# Plotting error as function of points per wavelength
plt.figure(figsize=(10, 6))
plt.plot(npl, err, ls="-", color="blue")
plt.title(r"Error as a function of $n/\lambda$ ")
plt.xlabel(r"n/$\lambda$")
plt.ylabel("Misfit energy (%) ")
plt.grid()
plt.show()
27.2. Conclusions#
2-point finite-difference approximations can provide estimates of the 1st derivative of a function
The accuracy depends on the “number of points per wavelength”, i.e., how well we sample the original function
The more points per wavelength we use the more accurate is the derivative approximation
