9. py-pde tutorial

Homesite: https://www.zwickergroup.org/software

import datetime
import functools
from pprint import pprint

import matplotlib.pyplot as plt
import numpy as np
import scipy
from IPython.display import YouTubeVideo
from pde import (
    PDE,
    CahnHilliardPDE,
    CartesianGrid,
    Controller,
    CylindricalSymGrid,
    DiffusionPDE,
    ExplicitSolver,
    FieldCollection,
    FileStorage,
    KPZInterfacePDE,
    MemoryStorage,
    PDEBase,
    PlotTracker,
    PolarSymGrid,
    PrintTracker,
    ScalarField,
    ScipySolver,
    SphericalSymGrid,
    UnitGrid,
    VectorField,
    solve_poisson_equation,
)
from pde.grids.operators.cartesian import _make_derivative2

[45f1bc1db132:04428] shmem: mmap: an error occurred while determining whether or not /tmp/ompi.45f1bc1db132.33333/jf.0/2884435968/shared_mem_cuda_pool.45f1bc1db132 could be created.
[45f1bc1db132:04428] create_and_attach: unable to create shared memory BTL coordinating structure :: size 134217728

YouTubeVideo("igvs4ZKLjy8")

plt.ion()

<contextlib.ExitStack at 0x7fa222a174a0>

np.set_printoptions(
    precision=1, suppress=True, formatter={"float": "{:0.1f}".format}, linewidth=50
)

9.1. Grids

grid = UnitGrid(shape=[32, 32])

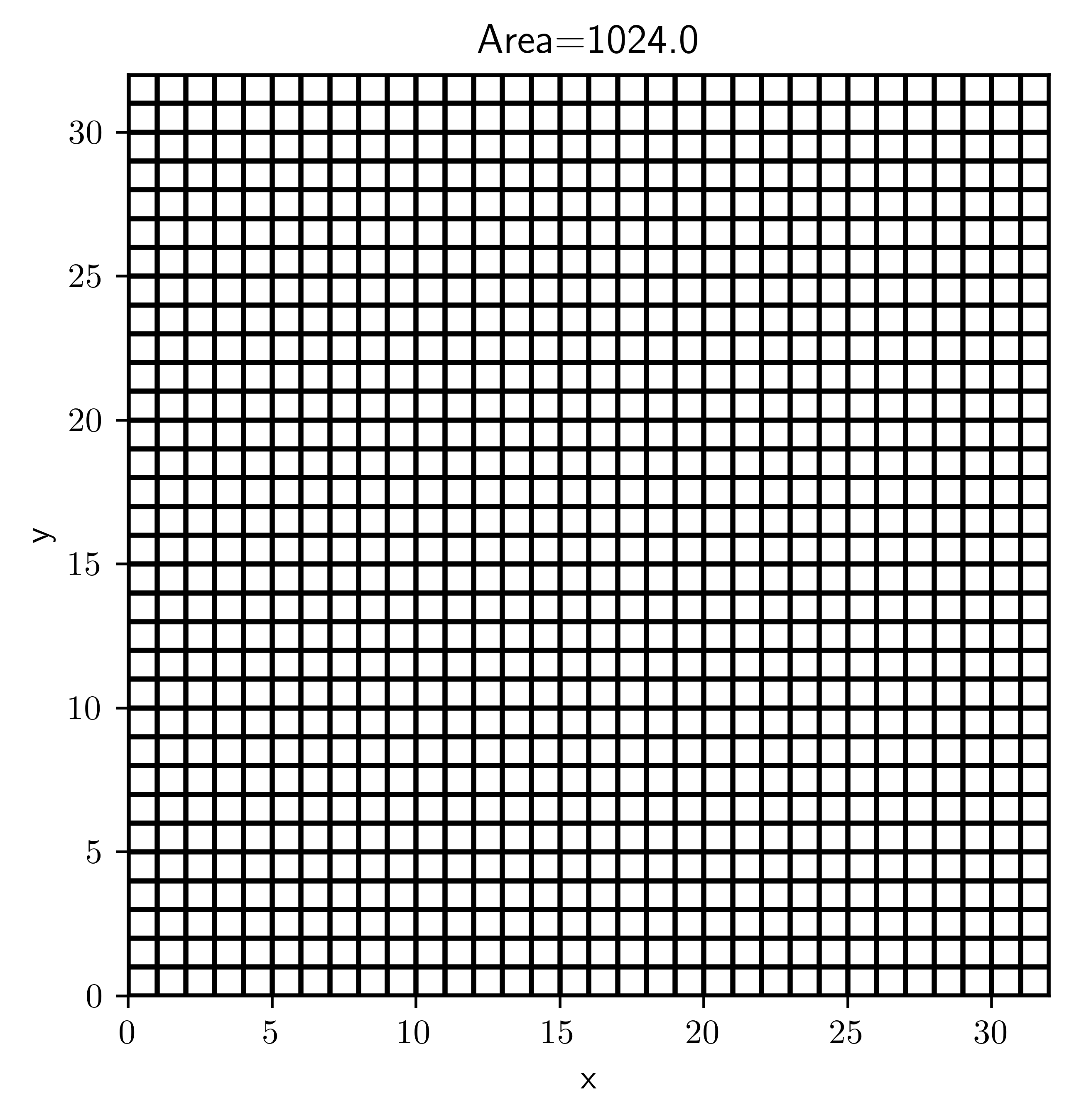

grid.plot(title=f"Area={grid.volume}")

grid = CartesianGrid(bounds=[[0, 2], [0, 1]], shape=[16, 32])

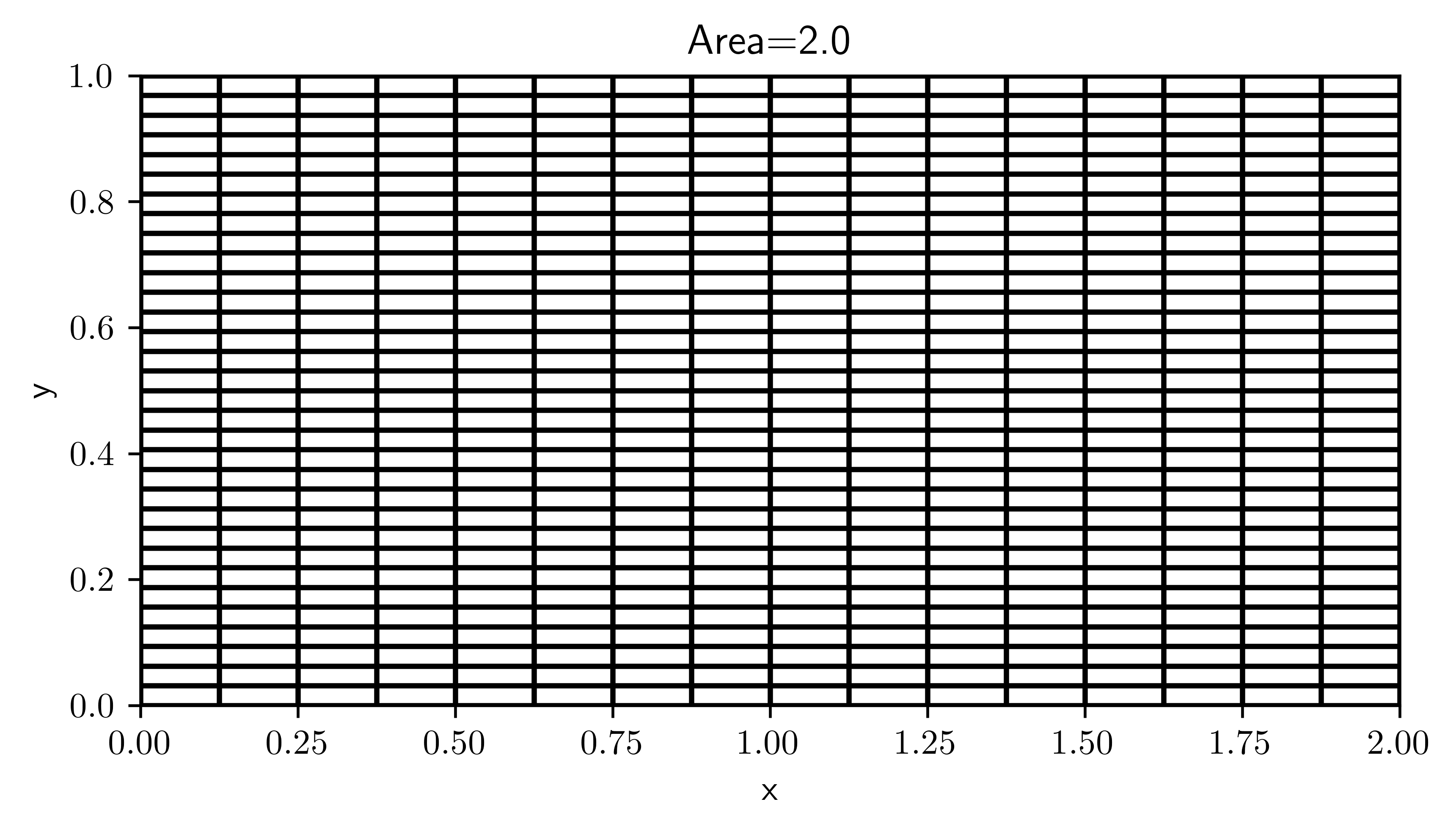

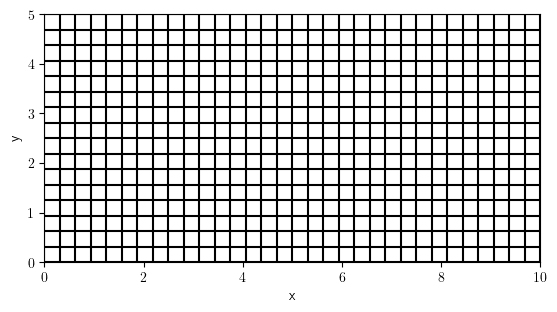

grid.plot(title=f"Area={grid.volume}")

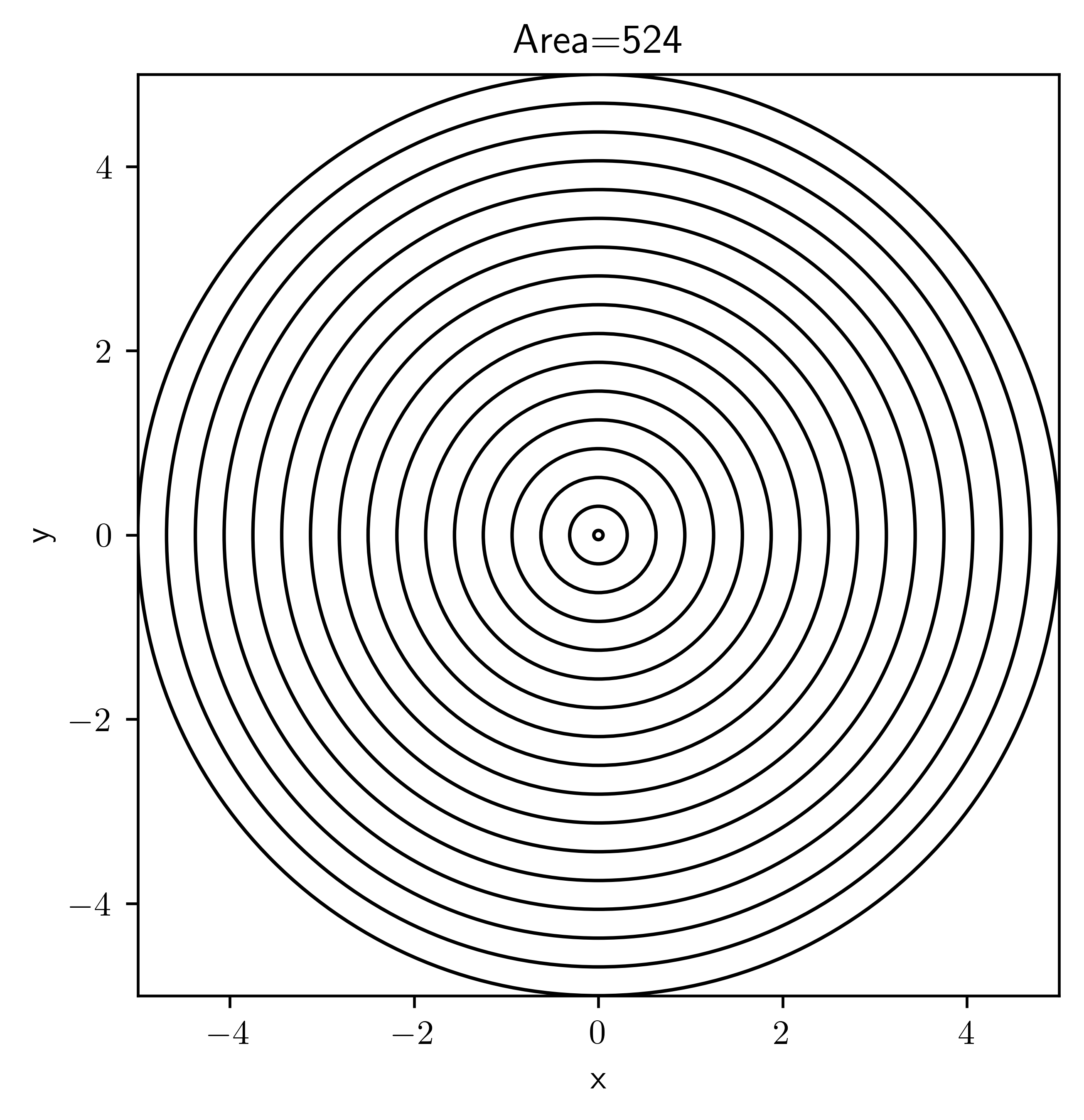

grid = PolarSymGrid(radius=5, shape=16)
grid.plot(title=f"Area={grid.volume:.3g}")

grid = SphericalSymGrid(radius=5, shape=16)
grid.plot(title=f"Area={grid.volume:.3g}")

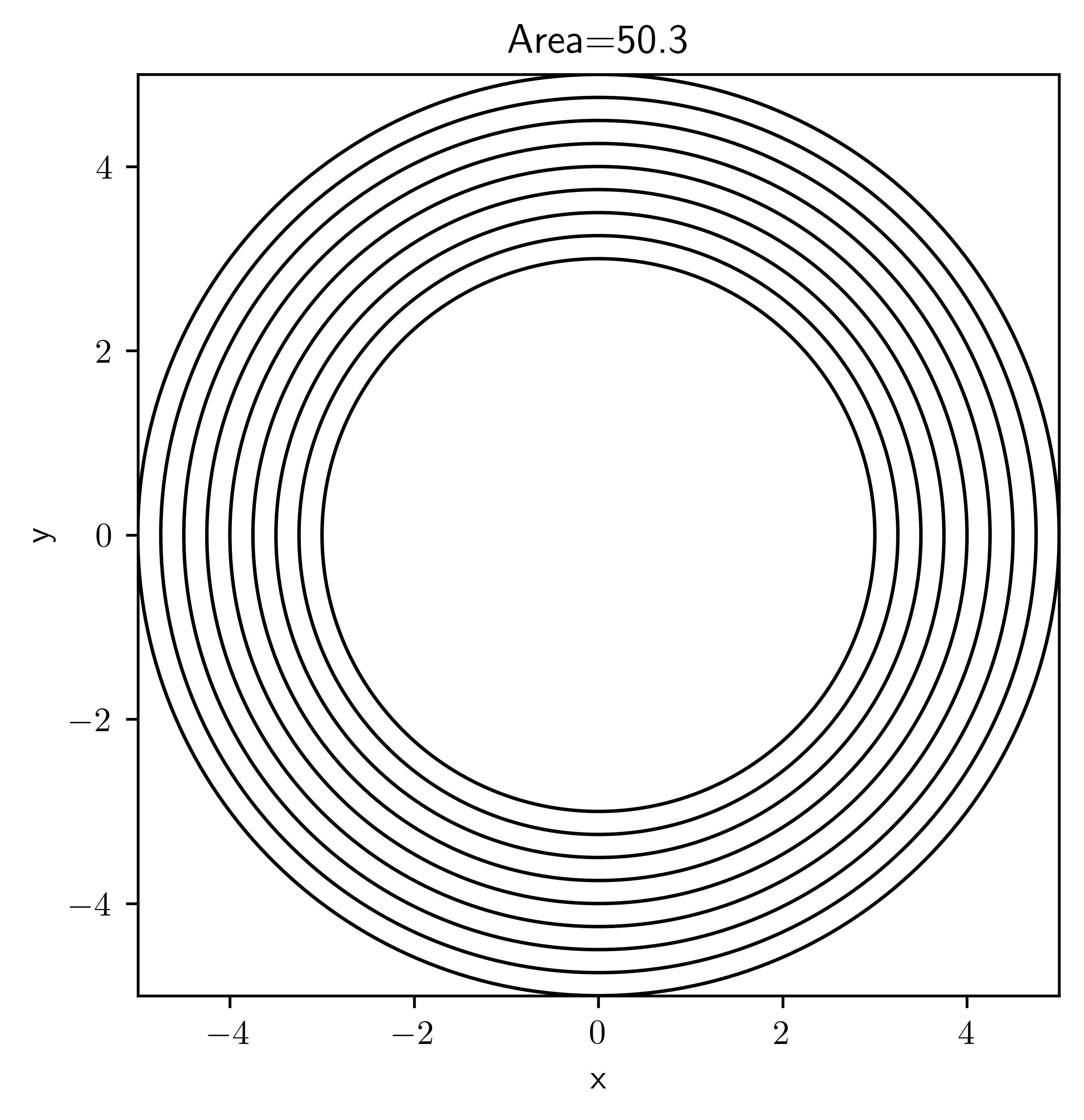

grid = PolarSymGrid(radius=(3, 5), shape=8)
grid.plot(title=f"Area={grid.volume:.3g}")

9.2. Fields

grid = CartesianGrid(bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32])

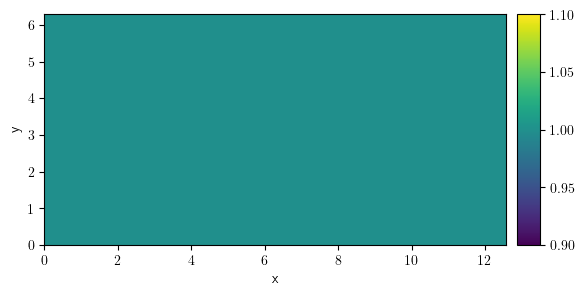

field = ScalarField(grid, data=1)

print(field.data)

[[1.0 1.0 1.0 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]
 ...
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]]

field += 4

print(field.data)

[[5.0 5.0 5.0 ... 5.0 5.0 5.0]
 [5.0 5.0 5.0 ... 5.0 5.0 5.0]
 [5.0 5.0 5.0 ... 5.0 5.0 5.0]
 ...
 [5.0 5.0 5.0 ... 5.0 5.0 5.0]
 [5.0 5.0 5.0 ... 5.0 5.0 5.0]
 [5.0 5.0 5.0 ... 5.0 5.0 5.0]]

grid = CartesianGrid(bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32])
data = np.arange(128 * 32).reshape(grid.shape)
field = ScalarField(grid, data=data)

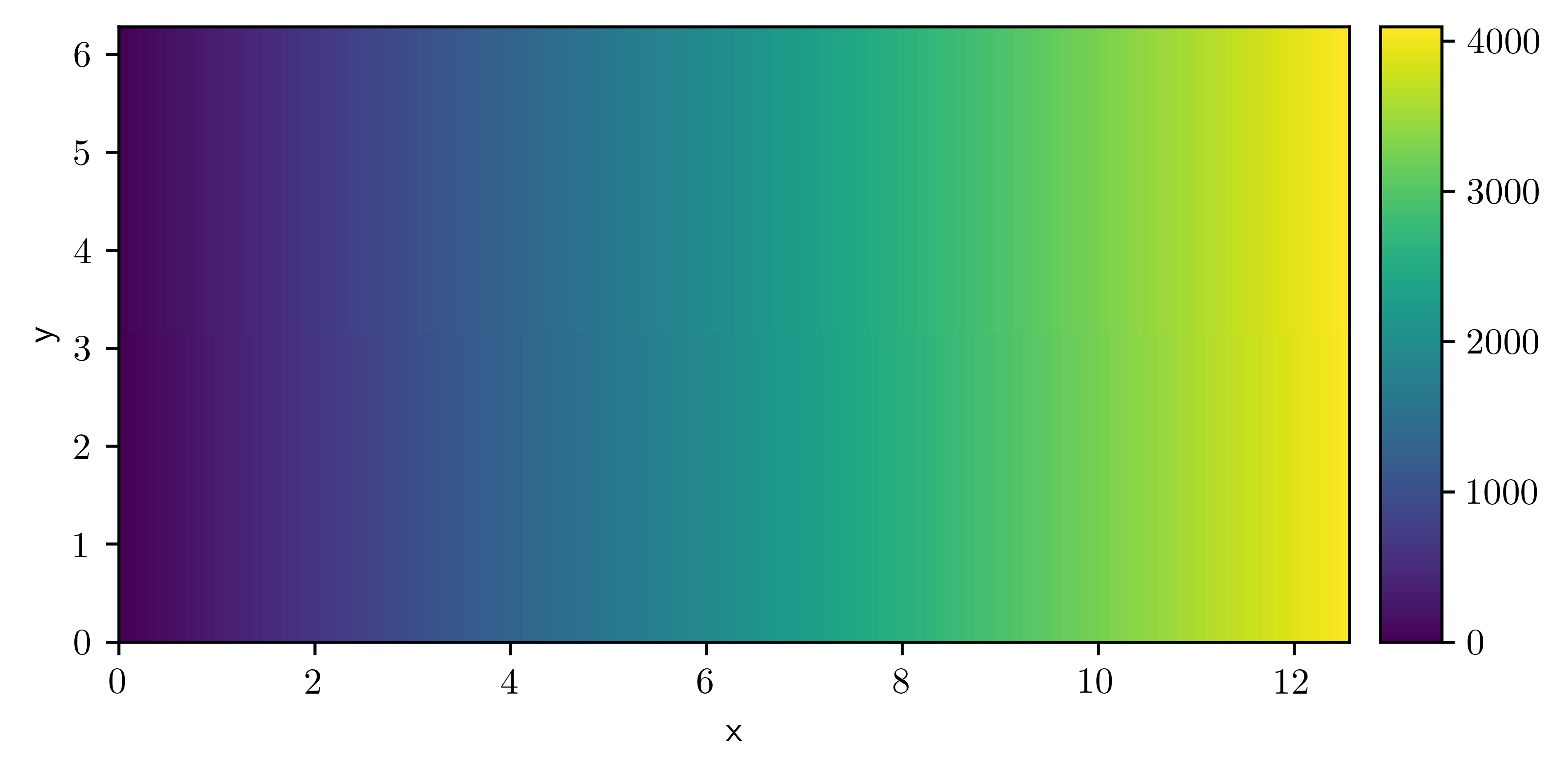

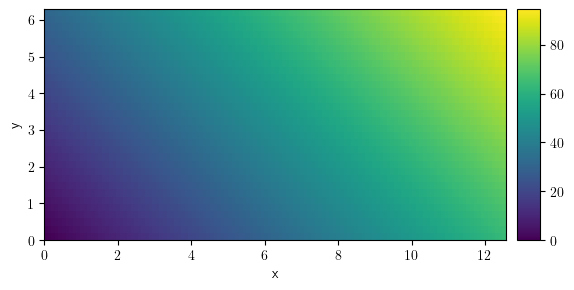

field.plot(colorbar=True)

<pde.tools.plotting.PlotReference at 0x7fa22054e0c0>

print(field.data)

[[0.0 1.0 2.0 ... 29.0 30.0 31.0]
 [32.0 33.0 34.0 ... 61.0 62.0 63.0]
 [64.0 65.0 66.0 ... 93.0 94.0 95.0]
 ...
 [4000.0 4001.0 4002.0 ... 4029.0 4030.0 4031.0]
 [4032.0 4033.0 4034.0 ... 4061.0 4062.0 4063.0]
 [4064.0 4065.0 4066.0 ... 4093.0 4094.0 4095.0]]

field.interpolate([2.1, 0.3])

array(669.5)

field = ScalarField.random_normal(grid=grid)

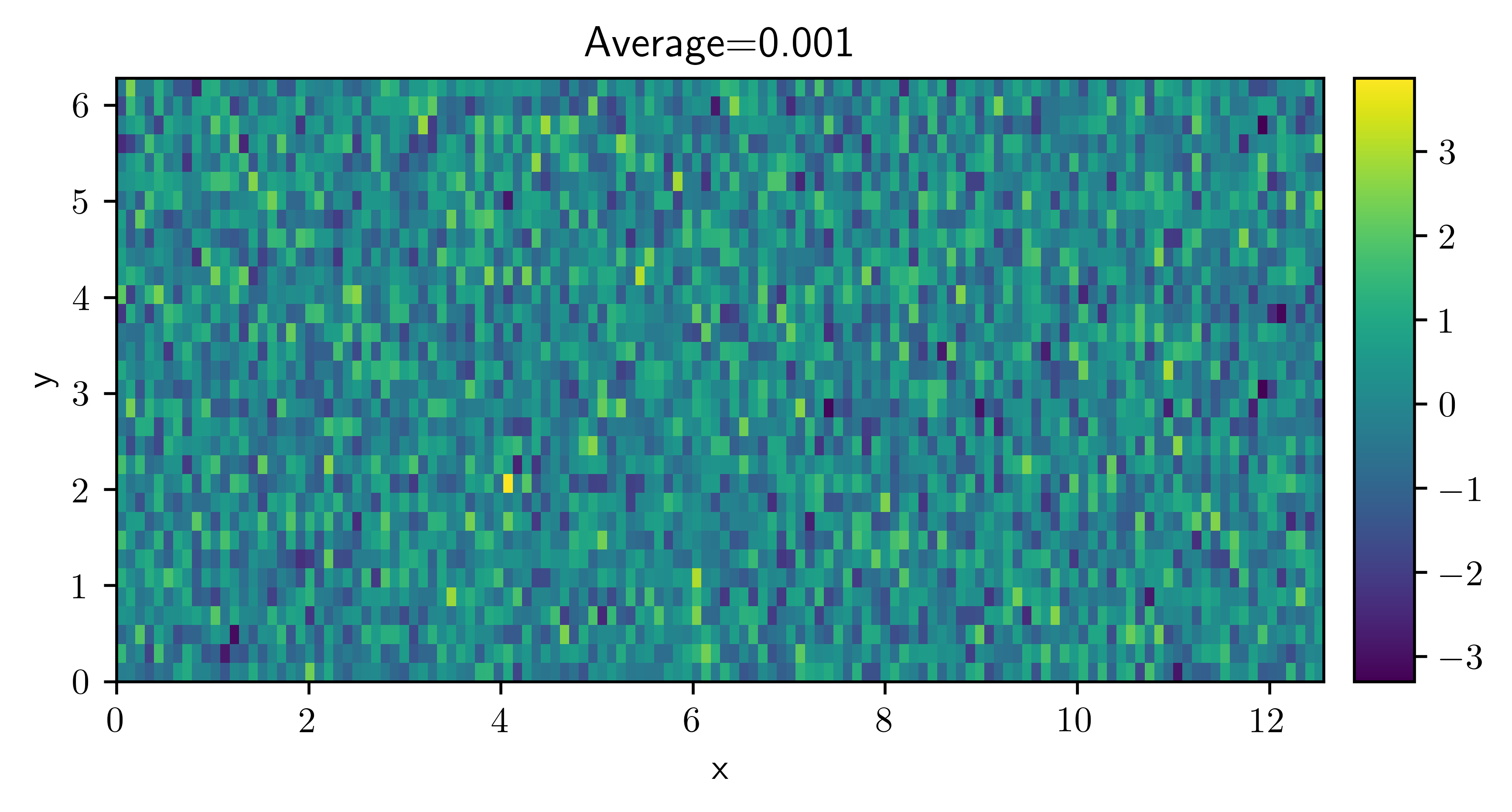

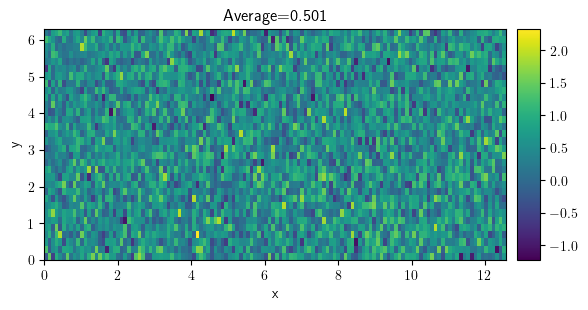

field.plot(title=f"Average={field.average:.3f}", colorbar=True);

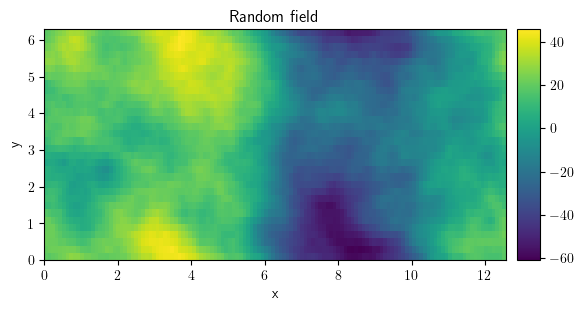

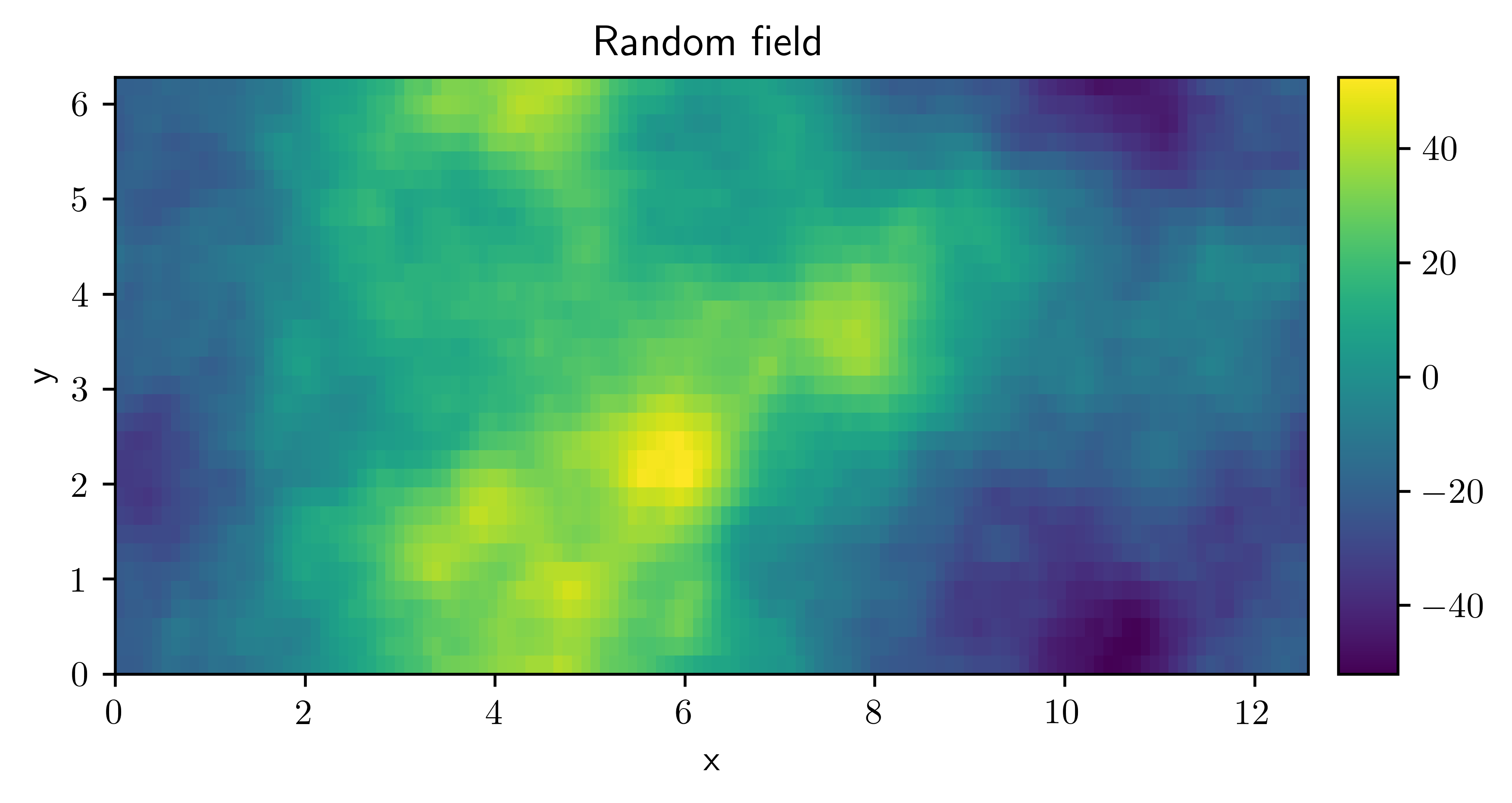

field = ScalarField.random_colored(grid=grid, exponent=-4, label="Random field")
field.plot()

<pde.tools.plotting.PlotReference at 0x7fa221228e80>

field.to_file("random_field.hdf")
!(ls random_field.hdf)

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[20], line 1
----> 1 field.to_file("random_field.hdf")
      2 get_ipython().system('(ls random_field.hdf)')

File /usr/lib/python3.12/site-packages/pde/fields/base.py:304, in FieldBase.to_file(self, filename, **kwargs)
    300 extension = Path(filename).suffix.lower()
    302 if extension in {".hdf", ".hdf5", ".he5", ".h5"}:
    303     # save data in hdf5 format
--> 304     import h5py
    306     with h5py.File(filename, "w") as fp:
    307         self._write_hdf_dataset(fp, **kwargs)

ModuleNotFoundError: No module named 'h5py'

field_loaded = ScalarField.from_file("random_field.hdf")
field_loaded.plot()

<pde.tools.plotting.PlotReference at 0x7f23c9f7dfc0>

slice_x = field.slice({"y": np.pi})

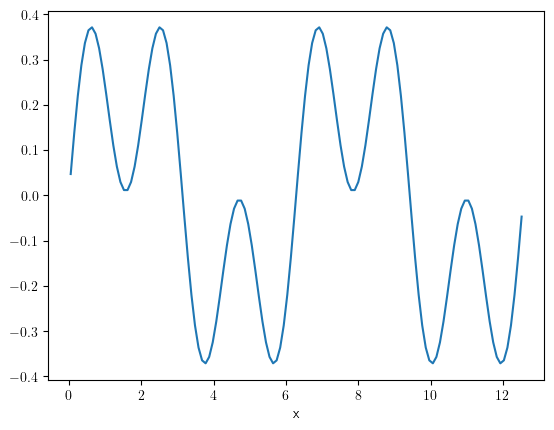

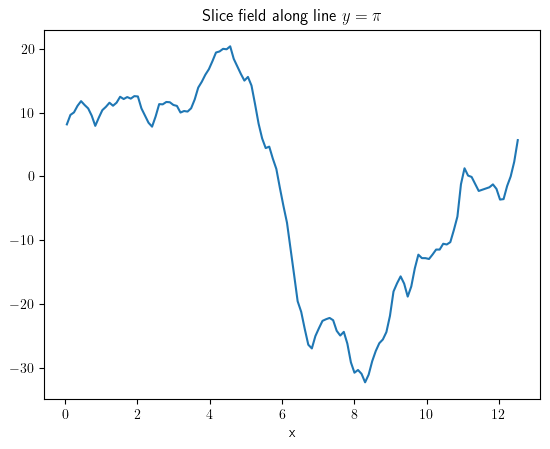

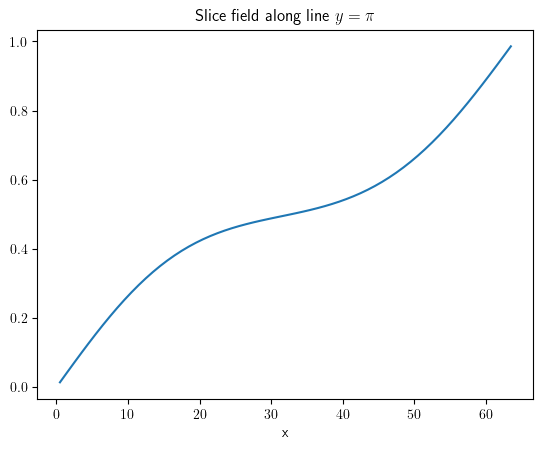

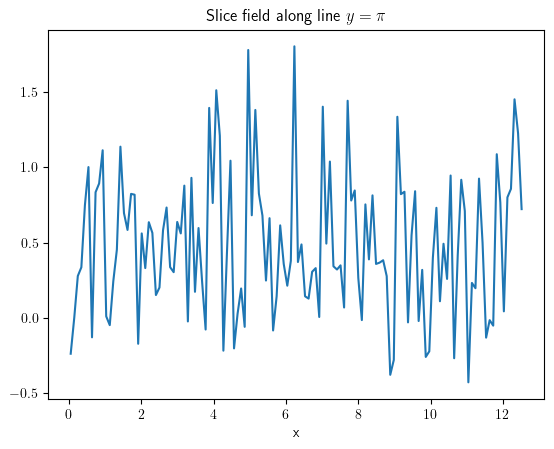

slice_x.plot(title=r"Slice field along line $y=\pi$");

project_x = field.project("y")

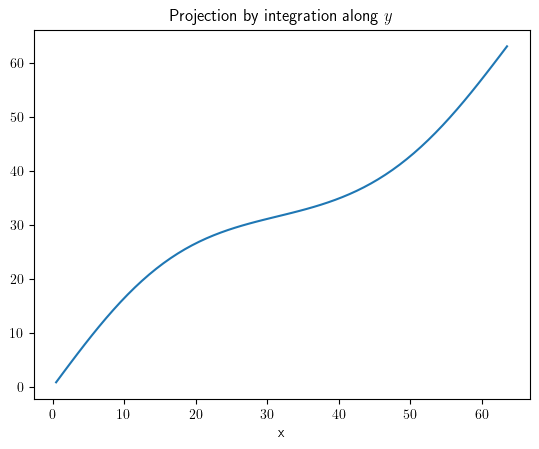

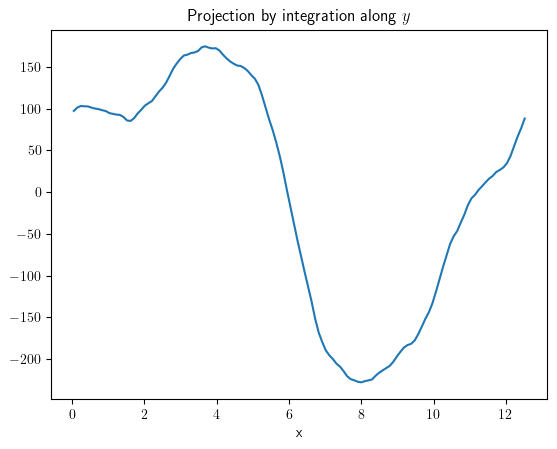

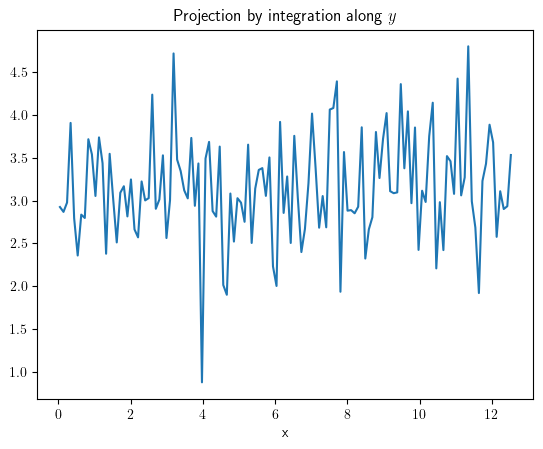

project_x.plot(title="Projection by integration along $y$");

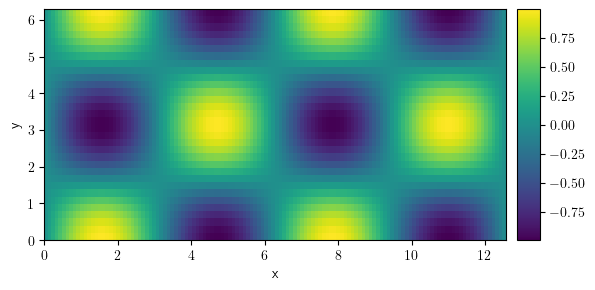

field = ScalarField.from_expression(grid=grid, expression="sin(x) * cos(y)")

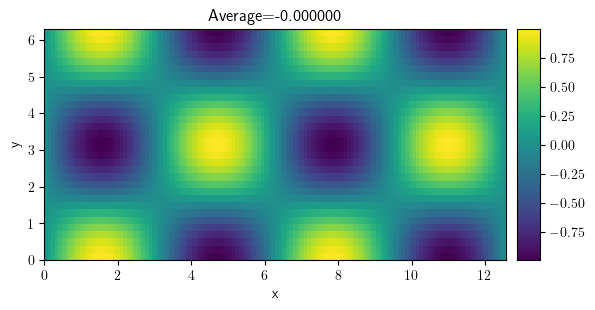

field.plot(title=f"Average={field.average:f}", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c9315400>

9.3. Differential operators

grid = CartesianGrid(bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32])
field = ScalarField.from_expression(grid=grid, expression="sin(x) * cos(y)")
laplace_dir = field.laplace(bc={"value": 0})

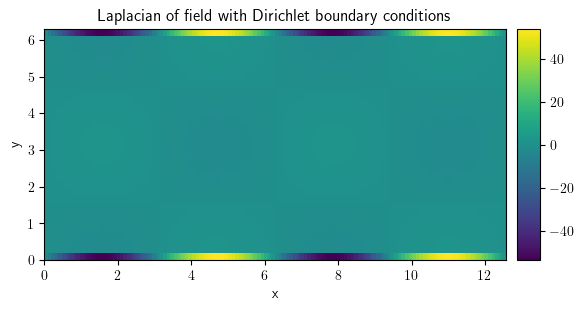

laplace_dir.plot(
    title="Laplacian of field with Dirichlet boundary conditions", colorbar=True
);

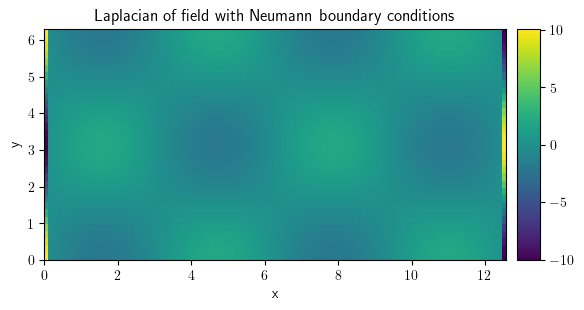

laplace_neu = field.laplace(bc={"derivative": 0})
laplace_neu.plot(
    title="Laplacian of field with Neumann boundary conditions", colorbar=True
)

<pde.tools.plotting.PlotReference at 0x7f23c9f99a00>

laplace_mix = field.laplace(bc=[{"value": 0}, {"derivative": 0}])
laplace_mix.plot(
    title="Laplacian of field with mixed boundary conditions", colorbar=True
)

<pde.tools.plotting.PlotReference at 0x7f23c8fd3d40>

grid_per = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32], periodic=True
)
field_per = ScalarField.from_expression(grid=grid_per, expression="sin(x) * cos(y)")
laplace_per = field_per.laplace("periodic")

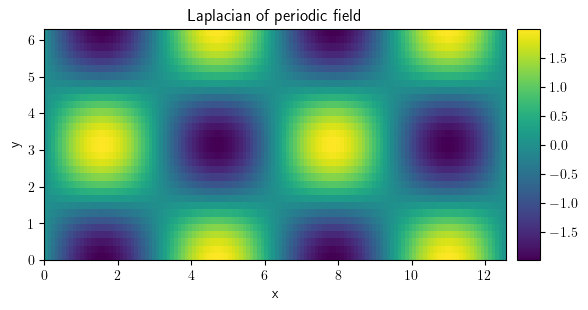

laplace_per.plot(title="Laplacian of periodic field", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c8df19c0>

grid_mixed = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32], periodic=[True, False]
)
field_mixed = ScalarField.from_expression(grid=grid_mixed, expression="sin(x) * cos(y)")

laplace_mixed = field_mixed.laplace(bc=["periodic", {"derivative": 0}])
laplace_mixed.plot(title="Laplacian of mixed field", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c91caa80>

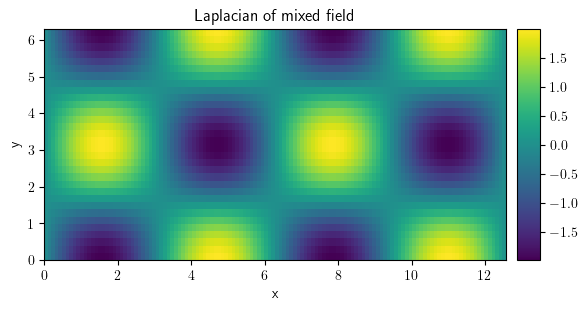

laplace_mixed = field_mixed.laplace(bc="natural")
laplace_mixed.plot(title="Laplacian of mixed field", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c8d8f200>

9.4. Vector Fields

grid_per = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32], periodic=True
)
vector_field = VectorField.from_expression(grid=grid_per, expressions=["1", "cos(x)"])
vector_field.plot();

field_per = ScalarField.from_expression(grid=grid_per, expression="sin(x) * cos(y)")
field_grad = field_per.gradient("natural")
field_grad.plot()

<pde.tools.plotting.PlotReference at 0x7f23c8ba21c0>

print(field_grad.average)

[0.0 -0.0]

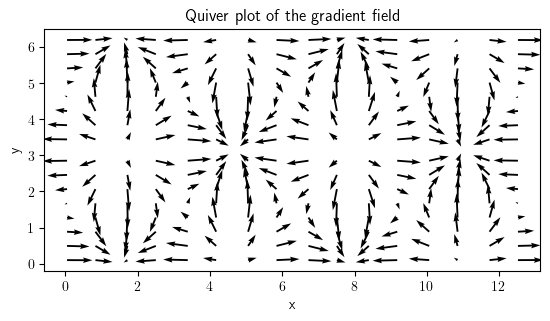

field_grad.plot(method="quiver", title="Quiver plot of the gradient field")

<pde.tools.plotting.PlotReference at 0x7f23c8f54900>

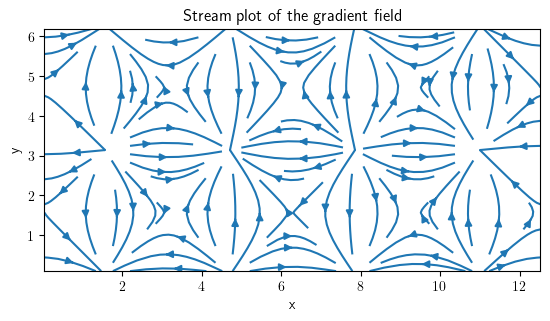

field_grad.plot(method="streamplot", title="Stream plot of the gradient field")

<pde.tools.plotting.PlotReference at 0x7f23c933bac0>

gradient_norm = field_grad.to_scalar("norm")

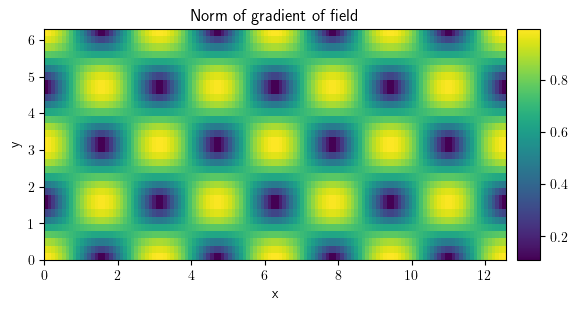

gradient_norm.plot(title="Norm of gradient of field", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c89930c0>

comp_x = field_grad[0]
comp_y = field_grad[1]

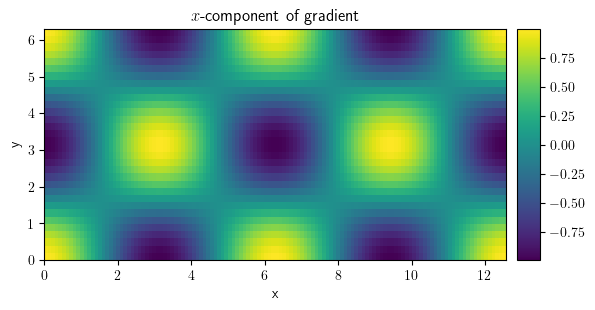

comp_x.plot(title="$x$-component of gradient", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c8892040>

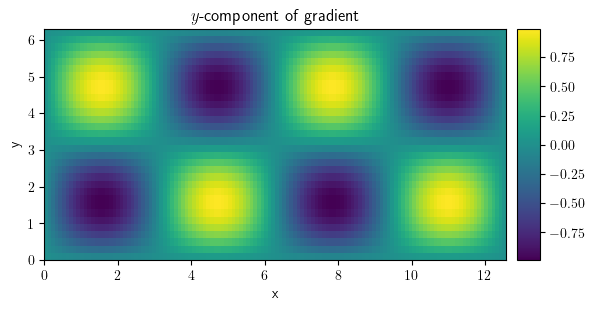

comp_y.plot(title="$y$-component of gradient", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c890ab40>

gradient_expl_norm = (comp_x**2 + comp_y**2) ** 0.5
np.allclose(gradient_expl_norm.data, gradient_norm.data)

True

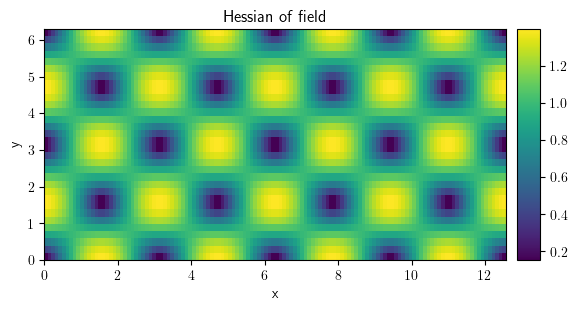

field_hess = field_grad.gradient("natural", label="Hessian of field")
field_hess.attributes

{'class': 'Tensor2Field',
 'grid': CartesianGrid(bounds=((0.0, 12.566370614359172), (0.0, 6.283185307179586)), shape=(128, 32), periodic=[True, True]),
 'label': 'Hessian of field',
 'dtype': dtype('float64')}

field_hess.plot()

<pde.tools.plotting.PlotReference at 0x7f23c8961280>

scalar_field = field_grad @ field_hess @ field_grad

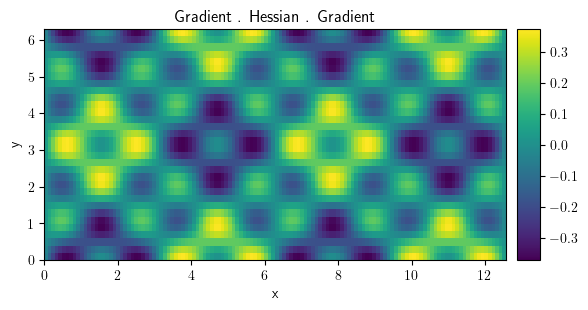

scalar_field.plot(title="Gradient . Hessian . Gradient", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c8584340>

scalar_field.slice({"y": np.pi}).plot()

<pde.tools.plotting.PlotReference at 0x7f23c8908840>

9.5. Field collections

grid_pol = PolarSymGrid(radius=[2, 7], shape=32)
scalar_field1 = ScalarField.from_expression(
    grid=grid_pol, expression="r**2", label="Increasing"
)
scalar_field2 = ScalarField.from_expression(
    grid=grid_pol, expression="1/r", label="Decreasing"
)
collection = FieldCollection(fields=[scalar_field1, scalar_field2])

collection.attributes

{'class': 'FieldCollection',
 'label': None,
 'dtype': dtype('float64'),
 'fields': [{'class': 'ScalarField',
   'grid': PolarSymGrid(radius=(2, 7), shape=(32,)),
   'label': 'Increasing',
   'dtype': dtype('float64')},
  {'class': 'ScalarField',
   'grid': PolarSymGrid(radius=(2, 7), shape=(32,)),
   'label': 'Decreasing',
   'dtype': dtype('float64')}]}

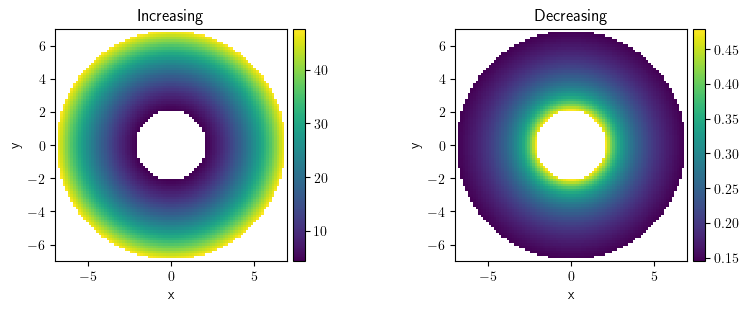

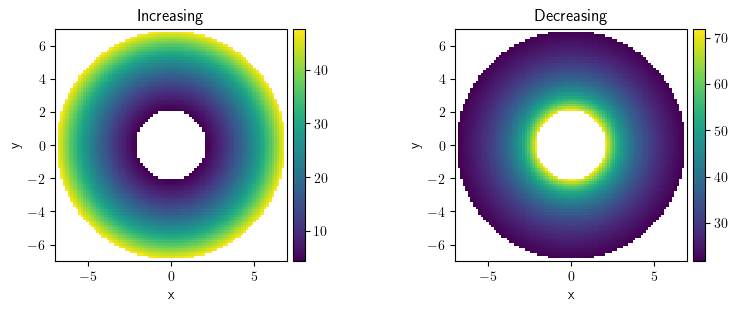

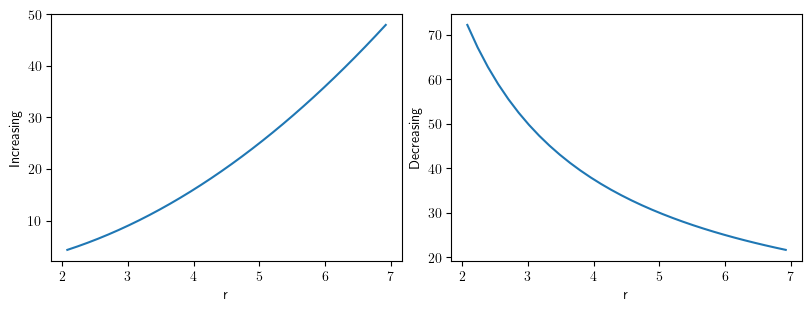

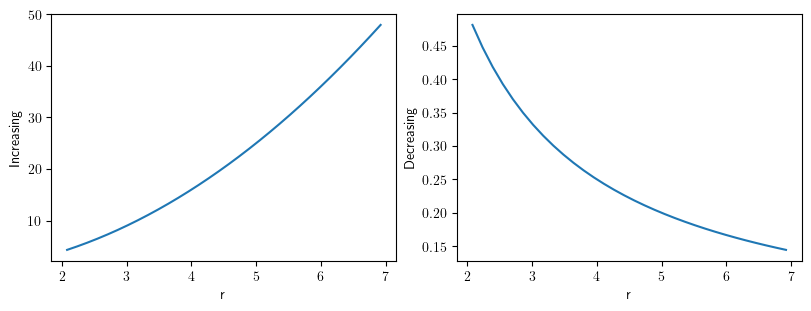

collection.plot()

[<pde.tools.plotting.PlotReference at 0x7f23c85e9e80>,
 <pde.tools.plotting.PlotReference at 0x7f23c86acd80>]

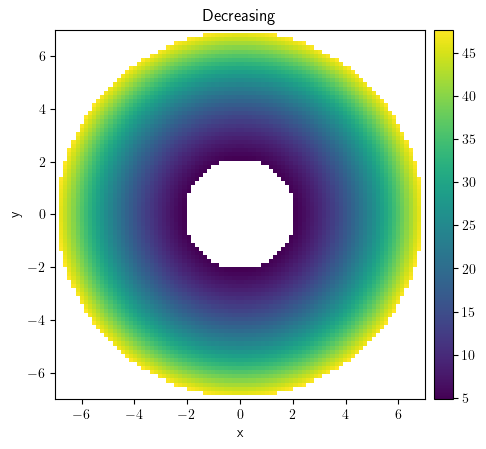

collection.plot("image")

[<pde.tools.plotting.PlotReference at 0x7f23c8ced500>,
 <pde.tools.plotting.PlotReference at 0x7f23c90d6640>]

(collection[0] + collection[1]).plot("image")

<pde.tools.plotting.PlotReference at 0x7f23c8d8cac0>

grid = UnitGrid(shape=[96, 64])
sf = ScalarField.random_colored(grid=grid, exponent=-3)
vf = VectorField.random_harmonic(grid=grid, modes=1)
fc = FieldCollection(fields=[sf, vf])

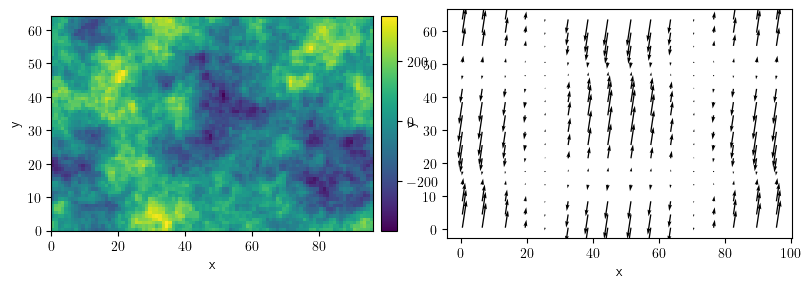

fc.plot()

[<pde.tools.plotting.PlotReference at 0x7f23c776cc40>,
 <pde.tools.plotting.PlotReference at 0x7f23c777aa40>]

9.6. Solving PDEs

grid = CartesianGrid(bounds=[[-1, 1], [-1, 1]], shape=64)
state = ScalarField.from_expression(grid=grid, expression="exp(-(x**2 + y**2) * 100)")

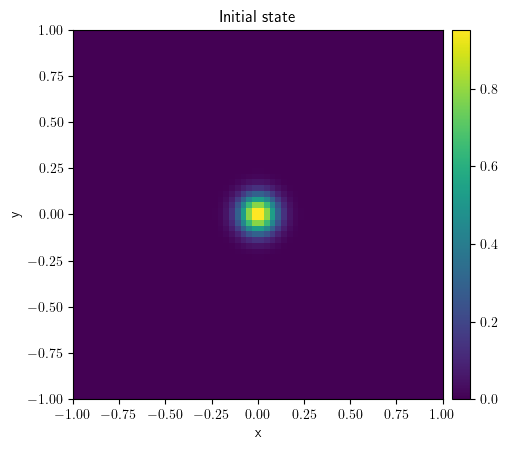

state.plot(title="Initial state")

<pde.tools.plotting.PlotReference at 0x7f23c769b0c0>

eq = DiffusionPDE()
result = eq.solve(state=state, t_range=1, dt=1e-4)

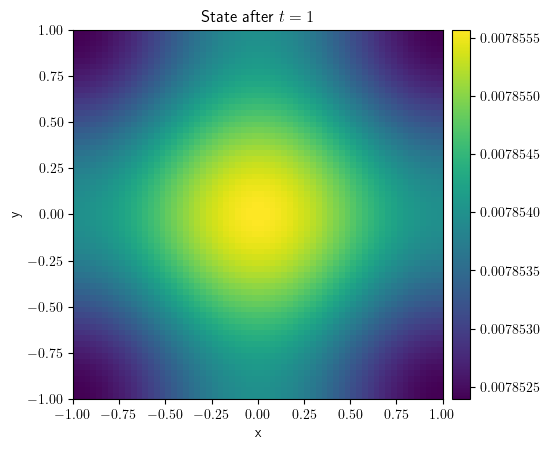

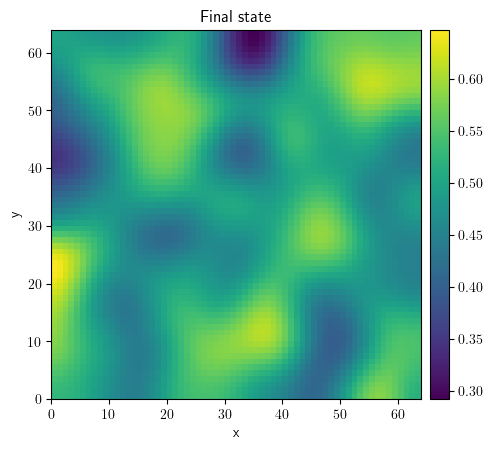

result.plot(title="State after $t=1$")

<pde.tools.plotting.PlotReference at 0x7f23c5c5d580>

grid = UnitGrid(shape=[64, 64])
state = ScalarField.random_uniform(grid=grid, vmin=-1, vmax=1)
eq = CahnHilliardPDE()
result = eq.solve(state=state, t_range=1e2, dt=1e-3)

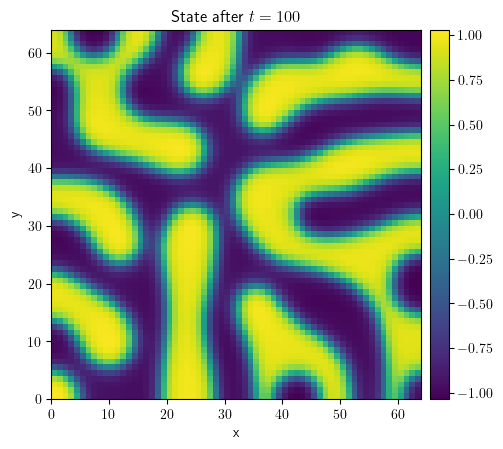

result.plot(title="State after $t=100$", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c52c4200>

grid = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 4 * np.pi]], shape=[32, 32], periodic=[False, True]
)
state = ScalarField.random_uniform(grid=grid, vmin=0.2, vmax=0.3)
bc_x_left = {"derivative": 0.1}
bc_x_right = {"value": "sin(y)"}
bc_x = [bc_x_left, bc_x_right]
bc_y = "periodic"
eq = DiffusionPDE(bc=[bc_x, bc_y])
result = eq.solve(state=state, t_range=10, dt=0.005)
result.plot(title="Diffusion with complex boundary conditions")

<pde.tools.plotting.PlotReference at 0x7f23c423ea80>

grid = SphericalSymGrid(radius=[0, 5], shape=32)
state = ScalarField.random_uniform(grid=grid)
eq = DiffusionPDE()
result = eq.solve(state=state, t_range=0.1, dt=0.005)

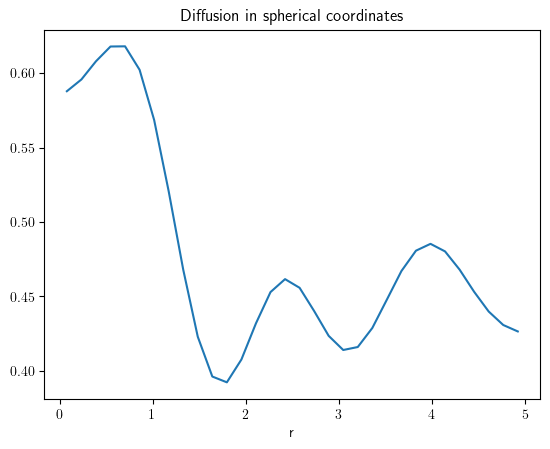

result.plot(title="Diffusion in spherical coordinates")

<pde.tools.plotting.PlotReference at 0x7f23c61c1d00>

9.7. Trackers

grid = UnitGrid(shape=[128, 128])
state = ScalarField.random_uniform(grid=grid, vmin=-0.5, vmax=0.5)
eq = CahnHilliardPDE()

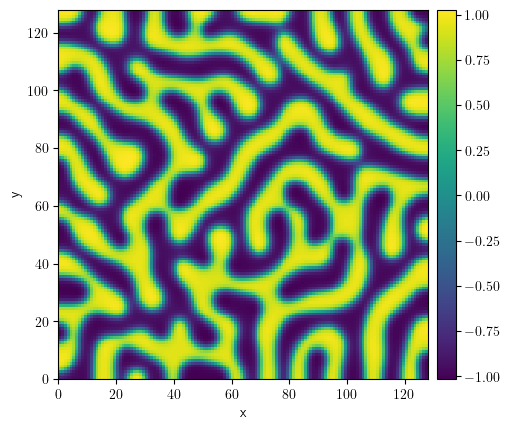

eq.solve(state=state, t_range=1e3, dt=0.01, tracker=PlotTracker(interval=100))

ScalarField(grid=UnitGrid(shape=(128, 128), periodic=[False, False]), data=[[-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 ...
 [1.0 1.0 0.9 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]])

trackers = ["progress", PrintTracker(interval="0:01")]
eq.solve(state=state, t_range=1e3, dt=0.01, tracker=trackers)

t=0, c=-0.0016±0.29
t=0.01, c=-0.0016±0.245
t=0.05, c=-0.0016±0.177
t=0.94, c=-0.0016±0.11
t=11.61, c=-0.0016±0.438
t=53.6, c=-0.0016±0.711
t=137.61, c=-0.0016±0.786
t=258.02, c=-0.0016±0.823
t=401.66, c=-0.0016±0.846
t=559.31, c=-0.0016±0.864
t=723.88, c=-0.0016±0.877
t=892.53, c=-0.0016±0.888

ScalarField(grid=UnitGrid(shape=(128, 128), periodic=[False, False]), data=[[-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 ...
 [1.0 1.0 0.9 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]
 [1.0 1.0 1.0 ... 1.0 1.0 1.0]])

storage = MemoryStorage()
result = eq.solve(
    state=state, t_range=100, dt=0.01, tracker=storage.tracker(interval=10)
)
result.plot()

<pde.tools.plotting.PlotReference at 0x7f23bf5a2040>

for field in storage:
    print(f"{field.integral:.3g}, {field.fluctuations:.3g}")

-26.1, 0.29
-26.1, 0.382
-26.1, 0.592
-26.1, 0.651
-26.1, 0.682
-26.1, 0.704
-26.1, 0.721
-26.1, 0.733
-26.1, 0.744
-26.1, 0.753
-26.1, 0.762

storage_write = FileStorage(filename="simulation.hdf")

result = eq.solve(
    state=state, t_range=100, dt=0.01, tracker=storage_write.tracker(interval=10)
)
result.plot()

<pde.tools.plotting.PlotReference at 0x7f23bf489b00>

storage_read = FileStorage(filename="simulation.hdf")

for field in storage_read:
    print(f"{field.integral:.3g}, {field.fluctuations:.3g}")

-26.1, 0.29
-26.1, 0.382
-26.1, 0.592
-26.1, 0.651
-26.1, 0.682
-26.1, 0.704
-26.1, 0.721
-26.1, 0.733
-26.1, 0.744
-26.1, 0.753
-26.1, 0.762

9.8. Stochastic

grid = UnitGrid(shape=[64])
state = ScalarField.random_harmonic(grid=grid)
eq = KPZInterfacePDE(noise=1)
storage = MemoryStorage()
result = eq.solve(state=state, t_range=100, dt=0.01, tracker=storage.tracker(1))

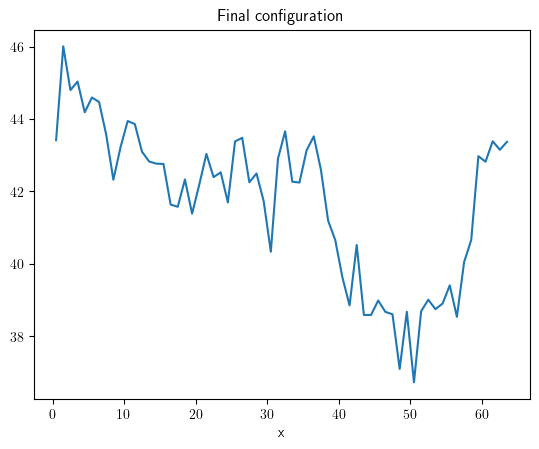

result.plot(title="Final configuration")

<pde.tools.plotting.PlotReference at 0x7f23c55c41c0>

9.9. Poisson

grid = CartesianGrid(bounds=[[0, 2 * np.pi]] * 2, shape=64)
bcs = [{"value": "sin(y)"}, {"value": "sin(x)"}]

field_zero = ScalarField(grid=grid)
result_laplace = solve_poisson_equation(rhs=field_zero, bc=bcs)

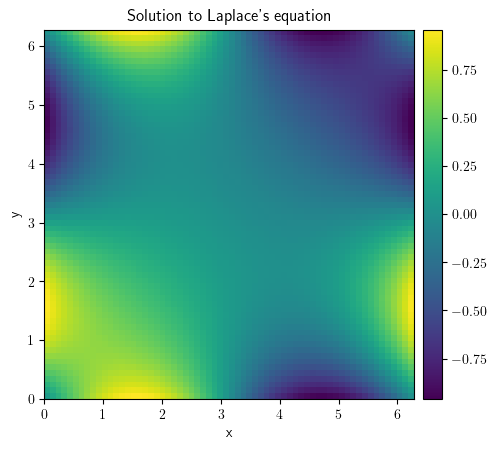

result_laplace.plot(title="Solution to Laplace's equation", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23bfc630c0>

field_one = ScalarField(grid=grid, data=-1)
result_poisson = solve_poisson_equation(rhs=field_one, bc={"value": "0"})

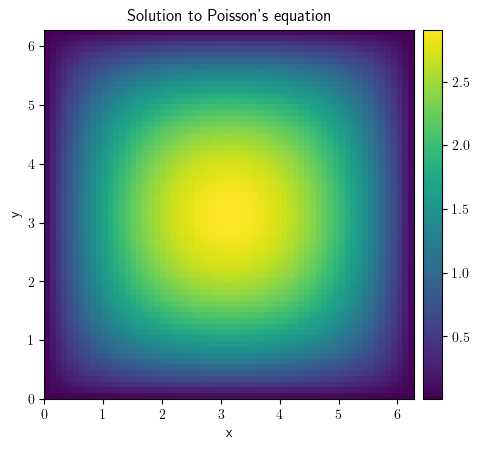

result_poisson.plot(colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23bf9ecd00>

result_poisson.laplace(bc={"value": "0"})

ScalarField(grid=CartesianGrid(bounds=((0.0, 6.283185307179586), (0.0, 6.283185307179586)), shape=(64, 64), periodic=[False, False]), data=[[-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 ...
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]
 [-1.0 -1.0 -1.0 ... -1.0 -1.0 -1.0]])

9.10. Diffusion equation

eq = PDE(rhs={"u": "laplace(u)"})
grid = UnitGrid(shape=[64, 64])
state = ScalarField.random_normal(grid=grid, label="Initial state")

sol = eq.solve(state=state, t_range=10, dt=1e-2)
sol.label = "Final state"

FieldCollection(fields=[state, sol]).plot()

[<pde.tools.plotting.PlotReference at 0x7f23c4d0efc0>,
 <pde.tools.plotting.PlotReference at 0x7f23c4e0f1c0>]

a, b = 1, 3
d0, d1 = 1, 0.1
eq = PDE(
    rhs={
        "u": f"{d0} * laplace(u) + {a} - ({b} + 1) * u + u**2 * v",
        "v": f"{d1} * laplace(v) + {b} * u - u**2 * v",
    }
)

grid = UnitGrid(shape=[64, 64])
u = ScalarField(grid=grid, data=a, label="Field $u$")
v = b / a + 0.1 * ScalarField.random_normal(grid=grid, label="Field $v$")
state = FieldCollection(fields=[u, v])

sol = eq.solve(state=state, t_range=20, dt=1e-3, tracker=PlotTracker())

class KuramotoSivashinskyPDE(PDEBase):
    """Implementation of the normalized Kuramoto–Sivashinsky equation"""

    def evolution_rate(self, state, t=0):
        """implement the python version of the evolution equation"""
        state_lap = state.laplace(bc="natural")
        state_lap2 = state_lap.laplace(bc="natural")
        state_grad = state.gradient(bc="natural")
        return -state_grad.to_scalar("squared_sum") / 2 - state_lap - state_lap2

grid = UnitGrid(shape=[64, 64])
state = ScalarField.random_uniform(grid=grid)
eq = KuramotoSivashinskyPDE()
result = eq.solve(state=state, t_range=10, dt=0.01)

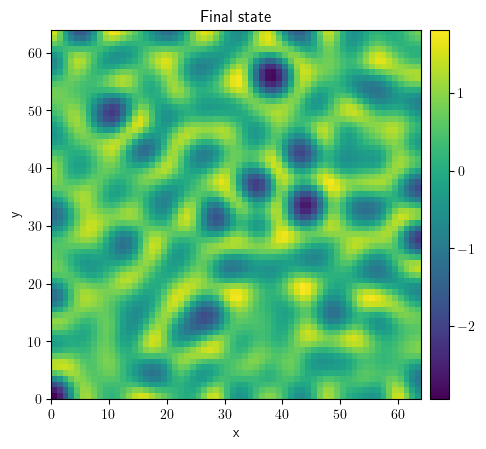

result.plot(title="Final state")

<pde.tools.plotting.PlotReference at 0x7f23c46504c0>

grid = UnitGrid(shape=[32, 32])
field = ScalarField.random_uniform(grid=grid, vmin=-1, vmax=1)
eq = DiffusionPDE()

solver1 = ExplicitSolver(pde=eq)
controller1 = Controller(solver=solver1, t_range=1, tracker=None)
sol1 = controller1.run(initial_state=field, dt=1e-3)
sol1.label = "py-pde"

pprint(controller1.diagnostics)

{'controller': {'jit_count': {'make_stepper': 11, 'simulation': 0},
                'process_count': 1,
                'profiler': {'compilation': 7.091595646999991,
                             'solver': 0.0371080500000005,
                             'tracker': 3.969099998357706e-05},
                'solver_duration': '0:00:00.037145',
                'solver_start': '2023-12-24 13:08:30.108362',
                'stop_reason': 'Reached final time',
                'successful': True,
                't_end': 1.0,
                't_final': 1.0,
                't_start': 0},
 'package_version': '0.33.3',
 'solver': {'backend': 'numba',
            'class': 'ExplicitSolver',
            'dt': 0.001,
            'pde_class': 'DiffusionPDE',
            'scheme': 'euler',
            'state_modifications': 0.0,
            'steps': 1000,
            'stochastic': False}}

solver2 = ScipySolver(pde=eq)
controller2 = Controller(solver=solver2, t_range=1, tracker=None)
sol2 = controller2.run(initial_state=field)
sol2.label = "scipy"

pprint(controller2.diagnostics)

{'controller': {'jit_count': {'make_stepper': 1, 'simulation': 0},
                'process_count': 1,
                'profiler': {'compilation': 1.4302910570000051,
                             'solver': 0.002160049999986313,
                             'tracker': 3.3870000009983414e-05},
                'solver_duration': '0:00:00.002188',
                'solver_start': '2023-12-24 13:08:32.156849',
                'stop_reason': 'Reached final time',
                'successful': True,
                't_end': 1.0,
                't_final': 1.0,
                't_start': 0},
 'package_version': '0.33.3',
 'solver': {'backend': 'numba',
            'class': 'ScipySolver',
            'dt': None,
            'pde_class': 'DiffusionPDE',
            'steps': 50,
            'stochastic': False}}

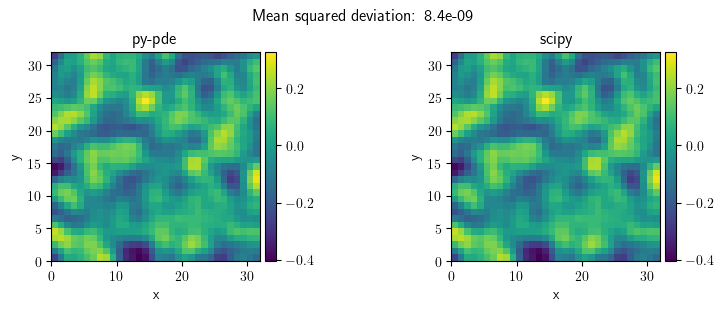

title = f"Mean squared deviation: {((sol1 - sol2)**2).average:.2g}"
FieldCollection(fields=[sol1, sol2]).plot(title=title)

[<pde.tools.plotting.PlotReference at 0x7f23c576eec0>,
 <pde.tools.plotting.PlotReference at 0x7f23bf3b76c0>]

grid = CylindricalSymGrid(radius=5, bounds_z=[0, 16], shape=[15, 16])

grid = CartesianGrid(bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32])
field = ScalarField(grid=grid, data=1)
field.plot()

<pde.tools.plotting.PlotReference at 0x7f23c51a6740>

x, y = grid.axes_coords

for i in range(len(x)):
    for j in range(len(y)):
        field.data[i, j] = 0.5 * i + j
field.plot()

<pde.tools.plotting.PlotReference at 0x7f23c46675c0>

field = ScalarField.random_normal(grid=grid, mean=0.5, std=0.5)
field.plot(title=f"Average={field.average:.3f}", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23bef868c0>

slice_x = field.slice(position={"y": np.pi})
slice_x.plot(title=r"Slice field along line $y=\pi$")

project_x = field.project(axes="y")
project_x.plot(title="Projection by integration along $y$")

<pde.tools.plotting.PlotReference at 0x7f23bee32c80>

field = ScalarField.from_expression(grid=grid, expression="sin(x) * cos(y)")
field.plot(title=f"Average={field.average:f}", colorbar=True);

grid_pol = PolarSymGrid(radius=[2, 7], shape=32)
scalar_field1 = ScalarField.from_expression(
    grid=grid_pol, expression="r**2", label="Increasing"
)
scalar_field2 = ScalarField.from_expression(
    grid=grid_pol, expression="150/r", label="Decreasing"
)
collection = FieldCollection(fields=[scalar_field1, scalar_field2])
collection.plot()

[<pde.tools.plotting.PlotReference at 0x7f23be96f400>,
 <pde.tools.plotting.PlotReference at 0x7f23bf1020c0>]

collection.plot("image")

[<pde.tools.plotting.PlotReference at 0x7f23beb530c0>,
 <pde.tools.plotting.PlotReference at 0x7f23c43bb0c0>]

field_sum = collection[0] + collection[1]
field_sum.plot(kind="image")

<pde.tools.plotting.PlotReference at 0x7f23bead24c0>

grid_per = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32], periodic=True
)
field_per = ScalarField.from_expression(grid=grid_per, expression="sin(x) * cos(y)")

laplace_per = field_per.laplace(bc="periodic")
laplace_per.plot(title="Laplacian of periodic field", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23c493b0c0>

grid = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32], periodic=False
)
field = ScalarField.from_expression(grid=grid, expression="sin(x) * cos(y)")

bc_x = ({"value": 0}, {"value": 0})
bc_y = ({"value": 0}, {"value": 0})

laplace_dir = field.laplace(bc=[bc_x, bc_y])
laplace_dir.plot(
    title="Laplacian of field with Dirichlet boundary conditions", colorbar=True
)

<pde.tools.plotting.PlotReference at 0x7f23c461b5c0>

laplace_neu = field.laplace(bc={"derivative": 0})
laplace_neu.plot(
    title="Laplacian of field with Neumann boundary conditions", colorbar=True
)

<pde.tools.plotting.PlotReference at 0x7f23c4ea7280>

laplace_mix = field.laplace(bc=[{"value": 0}, {"derivative": 0}])
laplace_mix.plot(
    title="Laplacian of field with mixed boundary conditions", colorbar=True
)

<pde.tools.plotting.PlotReference at 0x7f23c57ae300>

grid_mixed = CartesianGrid(
    bounds=[[0, 4 * np.pi], [0, 2 * np.pi]], shape=[128, 32], periodic=[True, False]
)
field_mixed = ScalarField.from_expression(grid=grid_mixed, expression="sin(x) * cos(y)")

laplace_mixed = field_mixed.laplace(bc=["periodic", {"derivative": 0}])
laplace_mixed.plot(title="Laplacian of mixed field", colorbar=True)

<pde.tools.plotting.PlotReference at 0x7f23bec7e100>

eq = PDE(rhs={"f": "1 * laplace(f)"})
grid = UnitGrid(shape=[64, 64])
state = ScalarField.random_normal(grid=grid, mean=0.5, std=1)
state.plot(title="Initial state")

<pde.tools.plotting.PlotReference at 0x7f23c4f8b0c0>

result = eq.solve(state=state, t_range=10, dt=0.1)

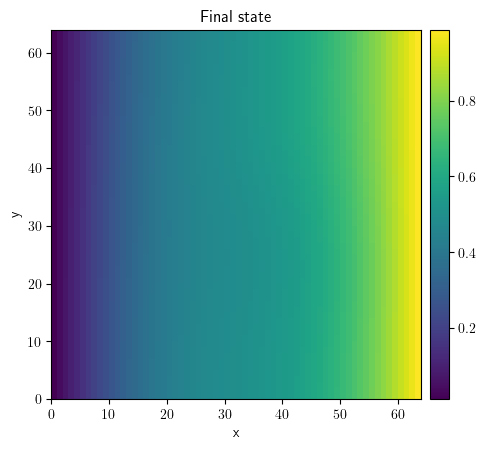

result.plot(title="Final state")

<pde.tools.plotting.PlotReference at 0x7f23bea59240>

center, width = 32, 50
state = ScalarField.from_expression(
    grid=grid, expression=f"exp(-((x-{center})**2 + (y-{center})**2)/{width})"
)
state.plot(title="Initial state")

<pde.tools.plotting.PlotReference at 0x7f23bddaaa80>

result = eq.solve(state=state, t_range=100, dt=0.1)
result.plot(title="Final state")

<pde.tools.plotting.PlotReference at 0x7f23bdb81a80>

bc_x = ({"value": 0}, {"value": 1})
bc_y = ({"derivative": 0}, {"derivative": 0})
eq_dir = PDE(rhs={"f": "laplace(f)"}, bc=[bc_x, bc_y])

grid = UnitGrid(shape=[64, 64], periodic=False)
state = ScalarField.random_normal(grid=grid, mean=0.5, std=1)
state.plot(title="Initial state")

<pde.tools.plotting.PlotReference at 0x7f23bdb130c0>

result = eq_dir.solve(state=state, t_range=100, dt=0.1)
result.plot(title="Final state")

<pde.tools.plotting.PlotReference at 0x7f23bd807540>

slice_x = result.slice(position={"y": np.pi})
slice_x.plot(title=r"Slice field along line $y=\pi$")

<pde.tools.plotting.PlotReference at 0x7f23bd772240>

project_x = result.project(axes="y")
project_x.plot(title="Projection by integration along $y$")

<pde.tools.plotting.PlotReference at 0x7f23bd5ef2c0>

field.to_file(filename="random_field.hdf")

field_loaded = ScalarField.from_file(filename="random_field.hdf")
field_loaded.plot()

<pde.tools.plotting.PlotReference at 0x7f23bd669bc0>

def ETA(step, maxStep, startTime):
    _ETA = None
    total_dt = 0
    dt = 0
    if step == 0:
        _ETA = "Indeterminate"
    else:
        dt = datetime.datetime.now() - startTime
        dt = dt.seconds
        total_dt = dt / step * maxStep
        _ETA = startTime + datetime.timedelta(seconds=total_dt)
        _ETA = str(_ETA.time())

    print(
        f"{int(100 * step / maxStep):>3} % completed. ETA: {_ETA} ({int(total_dt - dt)} seconds remain)."
        + "\t" * 5,
        end="\r",
    )

width = 10
height = 5
resolution = (2**5) / 10

grid = CartesianGrid(
    bounds=[[0, width], [0, height]],
    shape=[int(resolution * i) for i in [width, height]],
)

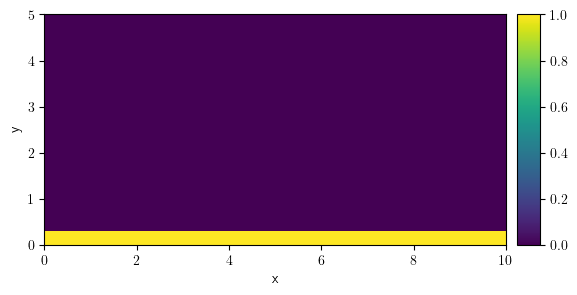

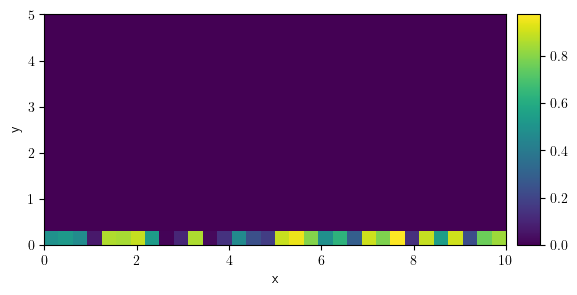

grid.plot()

membrane_mask = ScalarField(grid=grid, dtype=float)
membrane_mask.data[:, 0] = 1.0
membrane_mask.plot()

<pde.tools.plotting.PlotReference at 0x7f23bd3d2900>

make_laplace_x = functools.partial(_make_derivative2, axis=0)
CartesianGrid.register_operator("laplace_x", make_laplace_x)
c_m = ScalarField.random_uniform(grid=grid)
c_m *= membrane_mask
c_m.plot()

<pde.tools.plotting.PlotReference at 0x7f23bd4ad680>

# c_m._apply_operator("laplace_x", bc="natural").plot()
