A simple epidemic model for Covid 19 and its numerical solution

67. A simple epidemic model for Covid 19 and its numerical solution#

André Massing

Date: March 26, 2021

\(\newcommand{mb}[1]{\mathbf{#1}}\) If you want to have a nicer theme for your jupyter notebook, download the cascade stylesheet file tma4125.css and execute the next cell:

import ipywidgets as widgets
import matplotlib.pyplot as plt
import numpy as np
from IPython.core.display import HTML
from ipywidgets import fixed, interact
from numpy import pi
from numpy.linalg import norm, solve


def css_styling():
    try:
        with open("tma4125.css") as f:
            styles = f.read()
            return HTML(styles)
    except FileNotFoundError:
        pass  # Do nothing


# Comment out next line and execute this cell to restore the default notebook style
css_styling()

As always, we start by calling the necessary modules: And of course we want to import the required modules.

%matplotlib inline


# Use a funny plotting style
plt.xkcd()

newparams = {
    "figure.figsize": (6.0, 6.0),
    "axes.grid": True,
    "lines.markersize": 8,
    "lines.linewidth": 2,
    "font.size": 14,
}
plt.rcParams.update(newparams)

67.1. Plan for the day#

  • Part I: Extension of the SIR model

  • Part II: Numerical solution of SIR-like models

67.2. Part I: Extending the SIR model for disease spreading#

67.2.1. Review of the SIR model#

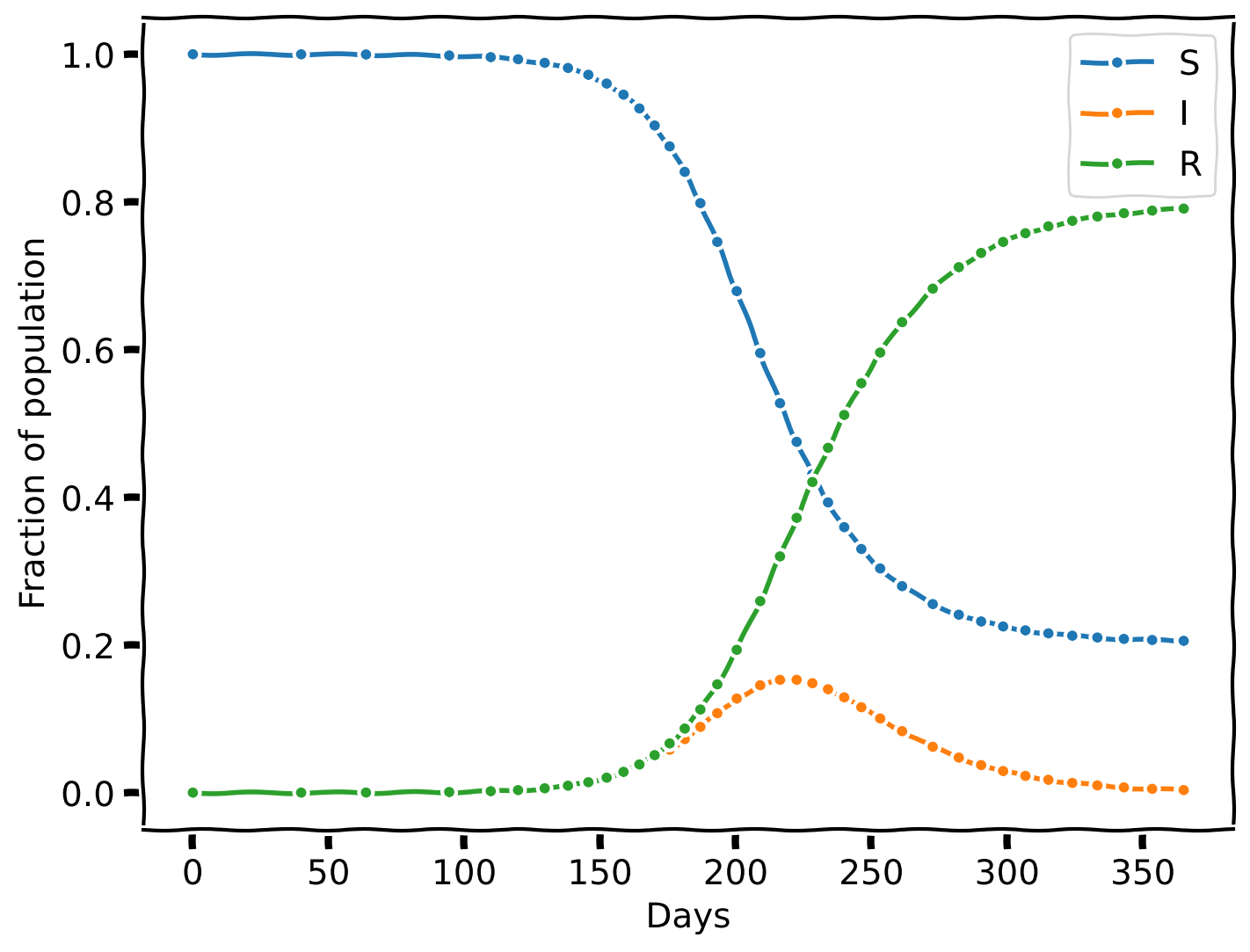

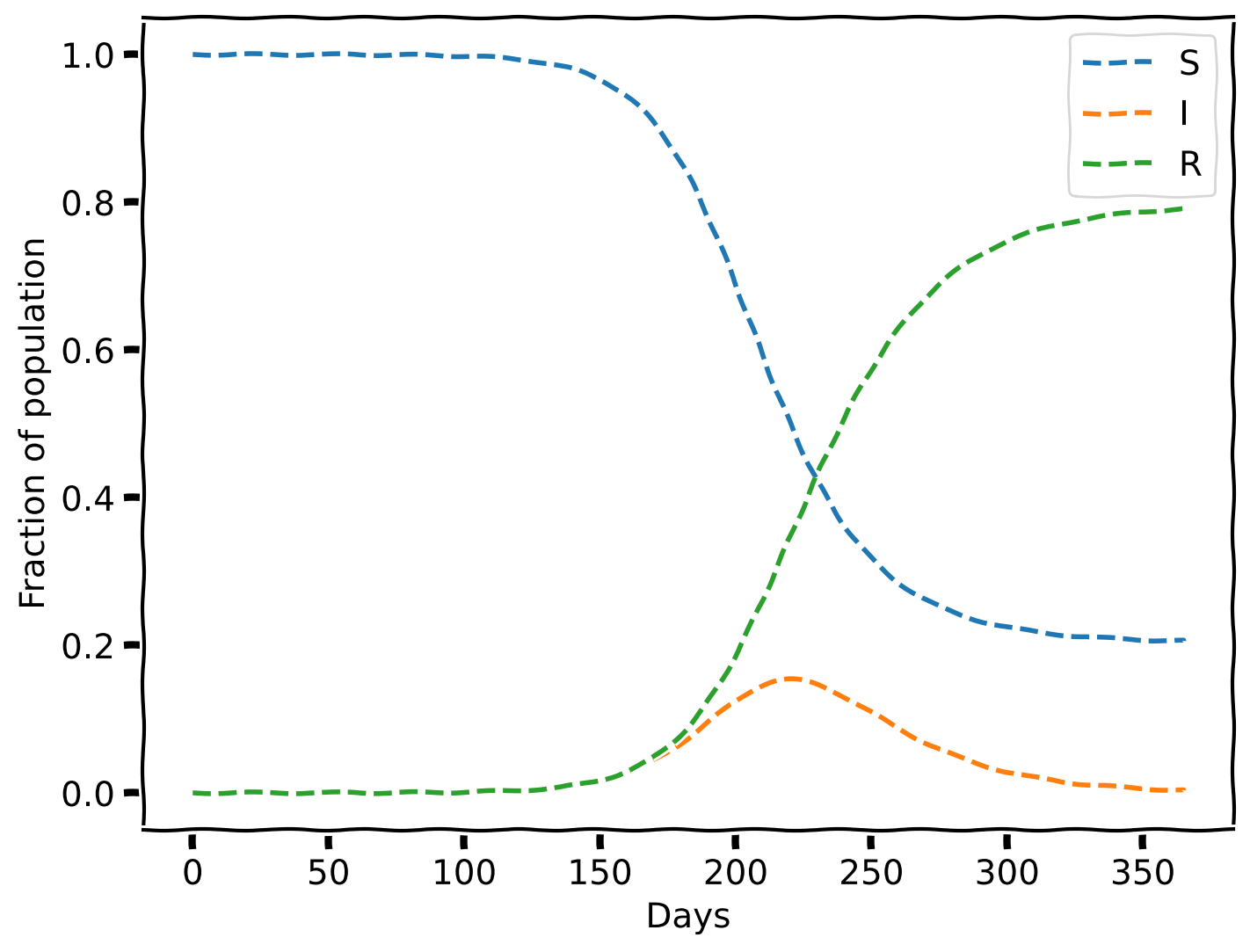

Motivated by the ongoing corona virus pandemic, we considered the simplest ODE model describing how an an infectious disease spread in a population.

The model goes under the name [SIR model] and a particular example of a compartmental model in epidemiology. An overview over more complicated model can be for example found on [wikipedia].

The SIR models divides the population into three population classes or compartments, namely

  • S(t): number individuals susceptible for infection,

  • I(t): number infected individuals, capable of transmitting the disease,

  • R(t): number removed individuals who cannot be infected due death or to immunity
    after recovery

The model is of the spreading of a disease is based on moving individual from \(S\) to \(I\) and then from \(S\) to \(R\), in short-hand notation

\[ S \to I \to R \]

We assume a

  • birth rate and rate of death not caused by Covid 19 can be neglected (no vital dynamics)

  • no incubation time, immediately transition from \(S\) to \(I\)

  • large population so we model it \(N, I, R\) as continuous functions

Note that we then have that the total population/number of individuals \(N(t)\) satisfies $\( S(t) + I(t) + R(t) = N(t) = \mathrm{const} \)\( and we assume that we have rescaled the population number such that \)N = 1\(, so \)I, S, R$ measures the proportion of susceptible, infectious and removed inviduals.

The final ODE system is given by

\begin{align} S’ &= - \beta S I \ I’ &= \beta S I - \gamma I \ R’ &= \gamma I, \end{align}

where

  • \(\beta\) denotes the infection rate, and

  • \(\gamma\) the removal rate.

Having this ODE in mind, an epidemic model can be simply specified by writing down a state transition diagram

\[ S \overset{\beta}{\to} I \overset{\gamma}{\to} R \]

67.2.2. A closer look at the derivation of the SIR model#

We give a brief motivation for the SIR model following the presentation in [Chapter 8.3] of the book [Programming for Computations - Python].

Question: How can we derive this model?

Starting from a number of susceptible inviduals \(S(t)\) and infectious individuals \(I(t)\) at some time \(t\) we want to know how many susceptible inviduals get infected during a time interval \(\Delta t\).

The change during this time interval \(\tau\) can be described a \begin{align} S(t+\Delta t) - S(t) = - \beta \Delta t S(t) I(t) \tag{1} \label{eq} \end{align} What is the meaning behind the right-hand side term of \eqref{eq}?

  • First, we have a negative sign since \(S\) is decreasing due to infections.

  • Second, the term $\( S(t)I(t).\)$ is simply the number of all possible contact pairs between susceptible and infectious individuals.

  • Third the infection rate \(\beta\) is composed of two factor $\( \beta = p \mu\)$ where

    • \(p\) is probality with which a \(S\)-\(I\) actually occur per unit time interval, so \(p \Delta t S(t)I(t)\) measures the number of actual contacts between susceptible and infectious individuals.

    • \(\mu\) is the probabilty with which an \(S\) individual gets infected during an \(S\)-\(I\) contact

Thus the total number of people newly infected during the time period \(\Delta t\) is thus $\(\underbrace{\mu p \Delta}_{:=\beta} t S(t) I(t)\)\( and therefore \)\( S(t+\Delta t) - S(t) = - \beta \Delta t S(t) I(t) \Leftrightarrow - \beta S(t) I(t) = \dfrac{S(t+\Delta t) - S(t)}{\Delta t} \to S'(t) \quad \text{for } \Delta t \to 0. \)$

67.2.3. \(R_0\) number and start of outbreaks#

Looking at $\( I' = \beta S I - \gamma I\)\( we see that an outbreak of a disease (read: increase of number of infections) can only occur if \)I’(0) > 0\(, but this is of course equivalent to \)\( 0 < \beta S(0) I(0) - \gamma I(0) \Leftrightarrow \underbrace{\dfrac{\beta}{\gamma}}_{:=R_0} S(0) > 1 \)$

\[ \dfrac{\beta}{\gamma} =: R_0 \]

is known as the basic reproduction number and corresponds basically to the number of individuals infected by each infectious individual.

The \(R_0\) can be affected by e.g. social distancing, (temporal) immunization, vaccination campaign etc. It also determines the treshold for flock immunity. If for instance the basic reproduction number is \(2\), the fraction of susceptible individual should be less that \(0.5\) to avoid an outbreak in the presence of infected individuals.

67.2.4. Breakout session (20 min)#

  1. Warm-up discussion:

    • How many people have you met physically since Monday?

    • How can social distancing be taken into account in SIR model? (The person in the group who has met the least number of people since Monday will be the appointed as group leader :)

  1. Challenge: To prevent the collapse of our health care system, we need to predict the number of additional hospitalized patients (caused by Covid 19) at any point in time. Discuss in your group how to incorporate the dynamics of the fraction \(H(t)\) of hospitalized patients into the SIR model to arrive at a \(SIHR\) model. Hint: With which population category with \(H\) interact?

  1. Cool-down: The SIR and even the SIHR model are very simplified models for diseaese spreading. Discuss possible effects/phenomena/parameters one might want to include in these models (e.g natural birth and death rates…) in a more accurate model. You can think of anything which somehow impact the population number or course of disease. Collect keywords on the [mentimeter] word cloud, the group leader will quickly summarize (some) ideas.

67.2.4.1. Feeback: Discussion, ipad solution and mentimeter poll#

  • Draw state diagram A, B, C and perform poll

  • Present final ODE model

  • Activate word cloud and discuss extensions

67.3. Part II: An adaptive Runge-Kutta method for the SIHR model#

In this part we want to implement an adaptive Runge-Kutta method to solve the extended \(SIHR\) model numerically.

67.3.1. Review: Runge-Kutta methods#

Explicit Runge-Kutta schemes are specified in the form of a Butcher table:

\begin{equation*} \begin{array}{c|ccc} c_1 & a_{11} & \cdots & a_{1s} \ \vdots & \vdots & & \vdots \ c_s & a_{s1} & \cdots & a_{ss} \ \hline & b_1 & \cdots & b_s \end{array} \end{equation*}

with \(c_1 = 0\) and \(a_{ij} = 0\) for \(j \geqslant i\).

So starting from \(y_i, t_i\) and chosen step size \(\tau_i\) the discrete solution at \(t_{i+1}\) is computed as follows

  • Compute stage derivatives \(k_j\) for \(j=1,\ldots,s\): \begin{equation*} k_{j} = f(t_i + c_j \tau, y_i + \tau \sum_{l=1}^{j-1} {a}_{jl} k_l) \end{equation*}

  • Compute the next time step via \begin{equation*}
    y_{i+1} = y_{i} + \tau \sum_{j=1}^s b_j k_j \end{equation*}

class ExplicitRungeKutta:
    def __init__(self, a, b, c):
        self.a = a
        self.b = b
        self.c = c

    def __call__(self, y0, t0, T, f, Nmax):
        # Extract Butcher table
        a, b, c = self.a, self.b, self.c

        # Stages
        s = len(b)
        ks = [np.zeros_like(y0, dtype=np.double) for s in range(s)]

        # Start time-stepping
        ys = [y0]
        ts = [t0]
        dt = (T - t0) / Nmax

        while ts[-1] < T:
            t, y = ts[-1], ys[-1]

            # Compute stages derivatives k_j
            for j in range(s):
                t_j = t + c[j] * dt
                dY_j = np.zeros_like(y, dtype=np.double)
                for l in range(j):
                    dY_j += a[j, l] * ks[l]

                ks[j] = f(t_j, y + dt * dY_j)

            # Compute next time-step
            dy = np.zeros_like(y, dtype=np.double)
            for j in range(s):
                dy += b[j] * ks[j]

            ys.append(y + dt * dy)
            ts.append(t + dt)

        return (np.array(ts), np.array(ys))

Usage example

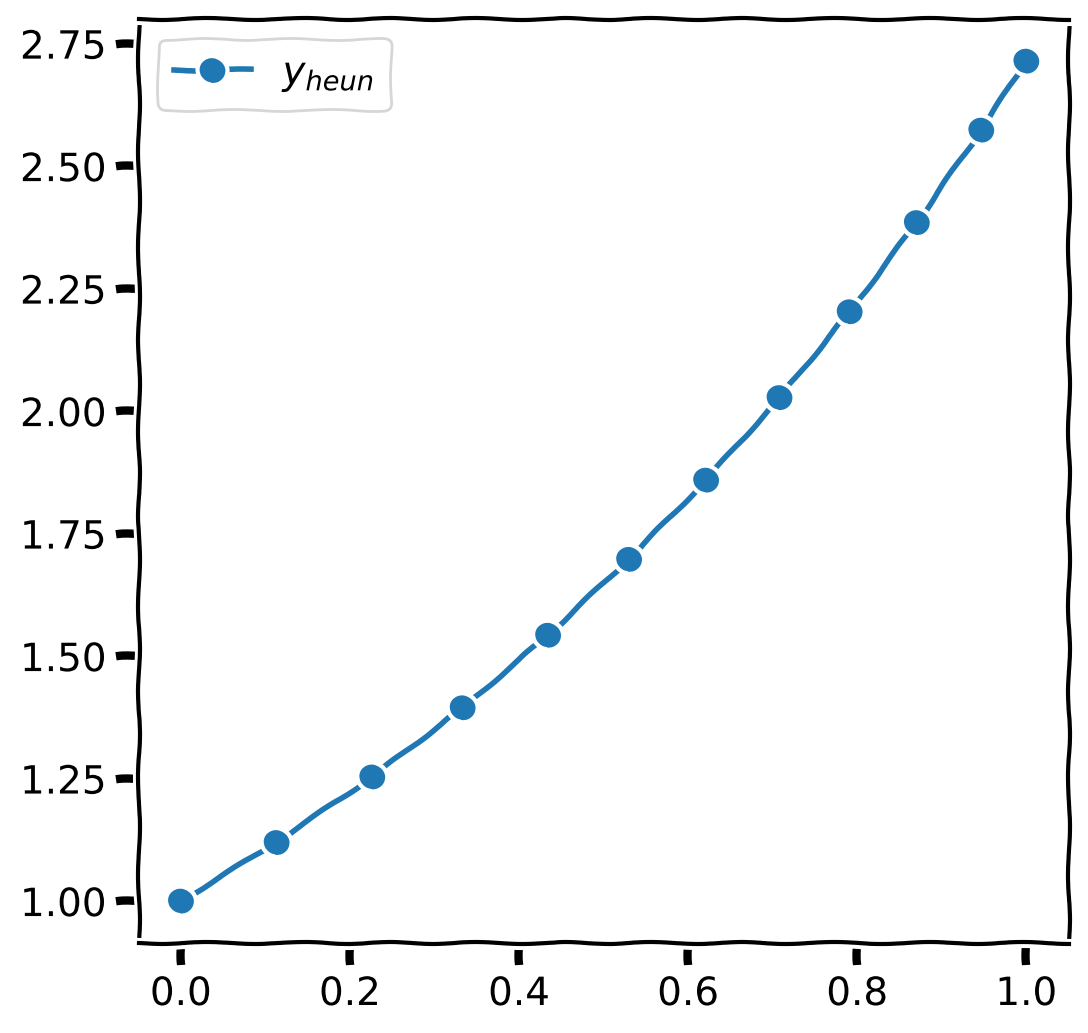

We use the class above to create a Runge-Kutta solver based on Heun’s method which is specified by \begin{equation*} \begin{array}{c|cc} 0 & 0 & 0 \ 1 & 1 & 0 \ \hline & \frac{1}{2} & \frac{1}{2} \end{array} \end{equation*} and the ODE $\( y' = \lambda y \)$

# Define Butcher table for Heun
a = np.array([[0, 0], [1.0, 0]])
b = np.array([1 / 2, 1 / 2.0])
c = np.array([0.0, 1])

# Create a new Runge Kutta solver
rk2 = ExplicitRungeKutta(a, b, c)

# Initial time, stop time
t0, T = 0, 1

# Initial value
y0 = 1

# Number of steps
Nmax = 10

# rhs of IVP
lam = 1
f = lambda t, y: lam * y

# solver can be simply called as function:
ts, ys = rk2(y0, t0, T, f, Nmax)

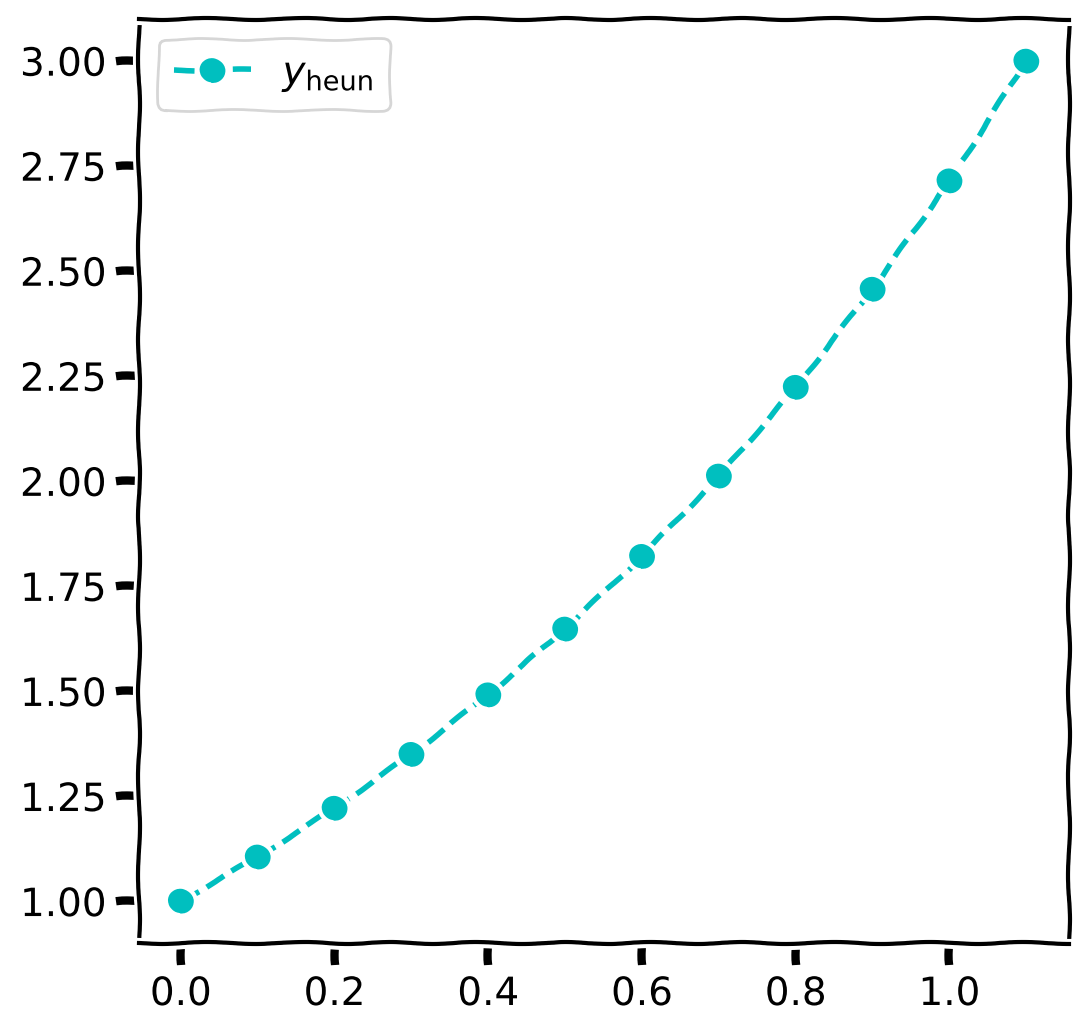

plt.plot(ts, ys, "c--o", label=r"$y_{\mathrm{heun}}$")
plt.legend()

<matplotlib.legend.Legend at 0x7f7664546db0>
