80. Numerical solution of ordinary differential equations: Euler’s and Heun’s method

Anne Kværnø, André Massing)

Date: Apr 2, 2020

If you want to have a nicer theme for your jupyter notebook, download the cascade stylesheet file tma4125.css and execute the next cell:

import matplotlib.pyplot as plt
import numpy as np
from IPython.core.display import HTML
from numpy import pi
from numpy.linalg import norm, solve


def css_styling():
    try:
        with open("tma4125.css") as f:
            styles = f.read()
            return HTML(styles)
    except FileNotFoundError:
        pass  # Do nothing


# Comment out next line and execute this cell to restore the default notebook style
css_styling()

As always, we start by calling the necessary modules: And of course we want to import the required modules.

%matplotlib inline


# Use a funny plotting style
plt.xkcd()
newparams = {
    "figure.figsize": (6.0, 6.0),
    "axes.grid": True,
    "lines.markersize": 8,
    "lines.linewidth": 2,
    "font.size": 14,
}
plt.rcParams.update(newparams)

81. Introduction: Whetting your appetite

The topic of this note is the numerical solution of systems of ordinary differential equations (ODEs). This has been discussed in previous courses, see for instance the web page Differensialligninger from Mathematics 1, as well as in Part 1 of this course, where the Laplace transform was introduced as a tool to solve ODEs analytically.

Before we present the first numerical methods to solve ODEs, we quickly look at a number of examples which hopefully will will serve as test examples throughout this topic.

81.1. Scalar first order ODEs

A scalar, first-order ODE is an equation on the form

\[ y'(t) = f(t,y(t)), \qquad y(t_0)=y_0, \]

where \(y'(t)=\frac{dy}{dx}\). The inital condition \(y(t_0)=y_0\) is required for a unique solution.

Notice.

It is common to use the term initial value problem (IVP) for an ODE for which the inital value \(y(t_0)=y_0\) is given, and we only are interested in the solution for \(x>t_0\). In these lecture notes, only initial value problems are considered.

81.2. Example 1: Population growth and decay processes

One of the simplest possible IVP is given by

\[ \begin{equation} y'(t) = \lambda y(t), \quad y(t_0)=y_0. \label{ode:eq:exponential} \tag{1} \end{equation} \]

For \(\lambda > 0\) this equation can present a simple model for the growth of some population, e.g., cells, humans, animals, with unlimited resources (food, space etc.). The constant \(\lambda\) then corresponds to the growth rate of the population.

Negative \(\lambda < 0\) typically appear in decaying processes, e.g., the decay of a radioactive isotopes, where \(\lambda\) is then simply called the decay constant.

The analytical solution to (1) is

\[ \begin{equation} y(t) = y_0 e^{\lambda(t-t_0)} \label{ode:eq:exponential_sol} \tag{2} \end{equation} \]

and will serve us at several occasions as reference solution to assess the accuracy of the numerical methods to be introduced.

81.3. Example 2: Time-dependent coefficients

Given the ODE

\[ y'(t) = -2ty(t), \quad y(0) = y_0. \]

for some given initial value \(y_0\). The general solution of the ODE is

\[ y(t) = C e^{-t^2}, \]

where \(C\) is a constant. To determine the constant \(C\), we use the initial condition \(y(0) = y_0\) yielding the solution

\[ y(t) = y_0 e^{-t^2}. \]

81.4. Systems of ODEs

A system of \(m\) ODEs are given by

\[\begin{split} \begin{align*} y_1' &= f_1(t,y_1,y_2,\dotsc,y_m), & y_1(t_0) &= y_{1,0} \\ y_2' &= f_2(t,y_1,y_2,\dotsc,y_m), & y_2(t_0) &= y_{2,0} \\ & \vdots & &\vdots \\ y_m' &= f_m(t,y_1,y_2,\dotsc,y_m), & y_m(t_0) &= y_{m,0} \\ \end{align*} \end{split}\]

Or more compactly by

\[ \mathbf{y}'(t) = \mathbf{f}(t, \mathbf{y}(t)), \qquad \mathbf{y}(t_0) = \mathbf{y}_0 \]

where we use boldface to denote vectors in \(\mathbb{R}^m\),

\[\begin{split} \mathbf{y}(t) = \left( \begin{array}{c} y_1(t) \\ y_2(t) \\ \vdots \\ y_m(t) \end{array} \right), \qquad \mathbf{f}(t,\mathbf{y}) = \left( \begin{array}{c} f_1(t,y_1,y_2,\dotsc,y_m), \\ f_2(t,y_1,y_2,\dotsc,y_m), \\ \vdots \\ f_m(t,y_1,y_2,\dotsc,y_m), \end{array} \right), \qquad \mathbf{y}_0 = \left( \begin{array}{c} y_{1,0} \\ y_{2,0} \\ \vdots \\ y_{m,0} \end{array} \right). \end{split}\]

81.5. Example 3: Lotka-Volterra equation

The Lotka-Volterra equation is a system of two ODEs describing the interaction between preys and predators over time. The system is given by

\[\begin{split} \begin{align*} y'(t) &= \alpha y(t) - \beta y(t) z(t) \\ z'(t) &= \delta y(t)z(t) - \gamma z(t) \end{align*} \end{split}\]

where \(x\) denotes time, \(y(t)\) describes the population of preys and \(z(t)\) the population of predators. The parameters \(\alpha, \beta, \delta\) and \(\gamma\) depends on the populations to be modeled.

81.6. Example 4: Spreading of diseases

Motivated by the ongoing corona virus pandemic, we consider a (simple!) model for the spreading of an infectious disease, which goes under the name SIR model.

The SIR models divides the population into three population classes, namely

• S(t): number individuals susceptible for infection,

• I(t): number infected individuals, capable of transmitting the disease,

• R(t): number removed individuals who cannot be infected due death or to immunity
  after recovery

The model is of the spreading of a disease is based on moving individual from \(S\) to \(I\) and then to \(R\). A short derivation can be found in [LingeLangtangen2016] (Ch. 4.2).

The final ODE system is given by

\[ \begin{equation} S' = - \beta S I \label{ode:eq:sir_model_s} \tag{3} \end{equation} \]

\[ \begin{equation} I' = \beta S I - \gamma I \label{ode:eq:sir_model_i} \tag{4} \end{equation} \]

\[ \begin{equation} R' = \gamma I, \label{ode:eq:sir_model_r} \tag{5} \end{equation} \]

where \(\beta\) denotes the infection rate, and \(\gamma\) the removal rate.

81.7. Higher order ODEs

An initial value ODE of order \(m\) is given by

\[ u^{(m)} = f(t,u,u',\dotsc,u^{(m-1)}), \qquad u(t_0)=u_0, \quad u'(t_0)=u'_0,\quad \dotsc, \quad u^{(m-1)}(t_0) = u^{(m-1)}_0. \]

Here \(u^{(1)} =u'\) and \(u^{(m+1)}=\frac{du^{(m)}}{dx}\), for \(m>0\).

81.8. Example 5:

Van der Pol’s equation is a second order differential equation, given by:

\[ u^{(2)} = \mu (1-u^2)u' - u, \qquad u(0)=u_0, \quad u'(0)=u'_0. \]

where \(\mu>0\) is some constant. As initial values \(u_0=2\) and \(u'_0=0\) are common choices.

Later in the note we will see how such equations can be rewritten as a system of first order ODEs. Systems of higher order ODEs can be treated similarly.

82. Euler’s method

Now we turn to our first numerical method, namely Euler’s method, known from Mathematics 1. We quickly review two alternative derivations, namely one based on numerical differentiation and one on numerical integration.

82.1. Derivation of Euler’s method

Euler’s method is the simplest example of a so-called one step method (OSM). Given the IVP

\[ y'(t) = f(t,y(t)), \qquad y(t_0)=y_0, \]

and some final time \(T\), we want to compute to an approximation of \(y(t)\) on \([t_0, T]\).

We start from \(t_0\) and choose some (usually small) time step size \(\tau_0\) and set the new time \(t_1 = t_0 + \tau_0\). The goal is to compute a value \(y_1\) serving as approximation of \(y(t_1)\).

To do so, we Taylor expand the exact (but unknown) solution \(y(t_0+\tau)\) around \(x_0\):

\[ y(t_0+\tau) = y(t_0) + \tau y'(t_0) + \frac{1}{2}\tau^2 y''(t_0) + \dotsm. \]

Assume the step size \(\tau\) to be small, such that the solution is dominated by the first two terms. In that case, these can be used as the numerical approximation in the next step:

\[ y(t_0+\tau) \approx y(t_0) + \tau y'(t_0) = y_0 + \tau f(t_0, y_0) \]

giving

\[ y_1 = y_0 + \tau_0 f(t_0,y_0). \]

Now we can repeat this procedure and choose the next (possibly different) time step \(\tau_1\) and compute a numerical approximation \(y_2\) for \(y(t)\) at \(t_2 = t_1 + \tau_1\) by setting

\[ y_2 = y_1 + \tau_1 f(t_1,y_1). \]

The idea is to repeat this procedure until we reached the final time \(T\) resulting in the following

Recipe: Euler’s method.

Given a function \(f(t,y)\) and an initial value \((t_0,y_0)\).

• Set \(t = t_0\).

• \(\texttt{while } t < T\):

  • Choose \(\tau_k\)

  • \(\displaystyle y_{k+1} := y_{k} + \tau f(t_k, y_k)\)

  • \(t_{k+1}:=t_k+\tau_k\)

  • \(t := t_{k+1}\)

So we can think of the Euler method as a method which approximates the continuous but unknown solution \(y(t): [t_0, T] \to \mathbb{R}\) by a discrete function \(y_{\Delta}:\{t_0, t_1, \ldots, t_{N_t}\}\) such that \(y_{\Delta}(t_k) := y_k \approx y(t_k)\).

How to choose \(\tau_i\)? The simplest possibility is to set a maximum number of steps \(N_{\mathrm{max}} = N_t\) and then to chose a constant time step \(\tau = (T-t_0)/N_{\mathrm{max}}\) resulting in \(N_{\mathrm{max}}+1\) equidistributed points. Later we will also learn, how to choose the time step adaptively, depending on the solution’s behavior.

Numerical solution between the nodes.

At first we have only an approximation of \(y(t)\) at the \(N_t +1 \) nodes \(y_{\Delta}:\{t_0, t_1, \ldots, t_{N_t}\}\). If we want to evaluate the numerical solution between the nodes, a natural idea is to extend the discrete solution linearly between each pair of time nodes \(t_{k}, t_{k+1}\). This is compatible with the way the numerical solution can be plotted, namely by connected each pair \((t_k, y_k)\) and \((t_{k+1}, y_{k+1})\) with straight lines.

Also, in order to compute an approximation at the next point \(t_{k+1}\), Euler’s method only needs to know \(f\), \(\tau_k\) and the solution \(y_k\) at the current point \(t_k\), but not at earlier points \(t_{k-1}, t_{k-2}, \ldots\) Thus Euler’s method is an prototype of a so-called One Step Method (OSM). We will formalize this concept later.

Interpretation: Euler’s method via forward difference operators.

After rearranging terms, we can also interpret the computation of an approximation \(y_1 \approx y(t_1)\) as replacing the derivative \(y'(t_0) = f(t_0, y_0)\) with a forward difference operator

\[ f(t_0,y_0) = y'(t_0) \approx \dfrac{y(t_1) - y(t_0)}{\tau} \]

Thus Euler’s method replace the differential quotient by a difference quotient.

Alternative derivation via numerical integration. First we recall that for a function \(f: [a,b] \to \mathbb{R}\), we can approximate its integral \(\int_a^b f(t) {\,\mathrm{d}t}\) by a very simple quadrature rule of the form

\[ \begin{equation} \int_a^b f(t) {\,\mathrm{d}t} \approx (b-a) f(a). \label{ode:ex:rectangular_qr} \tag{6} \end{equation} \]

Question.

What is the degree of exactness of the previous quadrature rule?

Turning to our IVP, we know formally integrate the ODE \(y'(t) = f(t, y(t))\) on the time interval \(I_k = [t_k, t_{k+1}]\) and then applying the quadrature rule (6) leading to

\[ y(t_{k+1}) - y(t_k) = \int_{t_k}^{t_{k+1}} y'(t) {\,\mathrm{d}t} = \int_{t_k}^{t_{k+1}} f(t,y(t)) {\,\mathrm{d}t} \approx \underbrace{(t_{k+1}-t_{k})}_{\tau_k}f(t_k, y(t_k)) \]

Sorting terms gives us back Euler’s method

\[ y(t_{k+1}) \approx y(t_k) + \tau_k f(t_k, y(t_k)). \]

82.2. Implementation of Euler’s method

Euler’s method can be implemented in only a few lines of code:

def explicit_euler(y0, t0, T, f, Nmax):
    ys = [y0]
    ts = [t0]
    dt = (T - t0) / Nmax
    while ts[-1] < T:
        t, y = ts[-1], ys[-1]
        ys.append(y + dt * f(t, y))
        ts.append(t + dt)
    return (np.array(ts), np.array(ys))

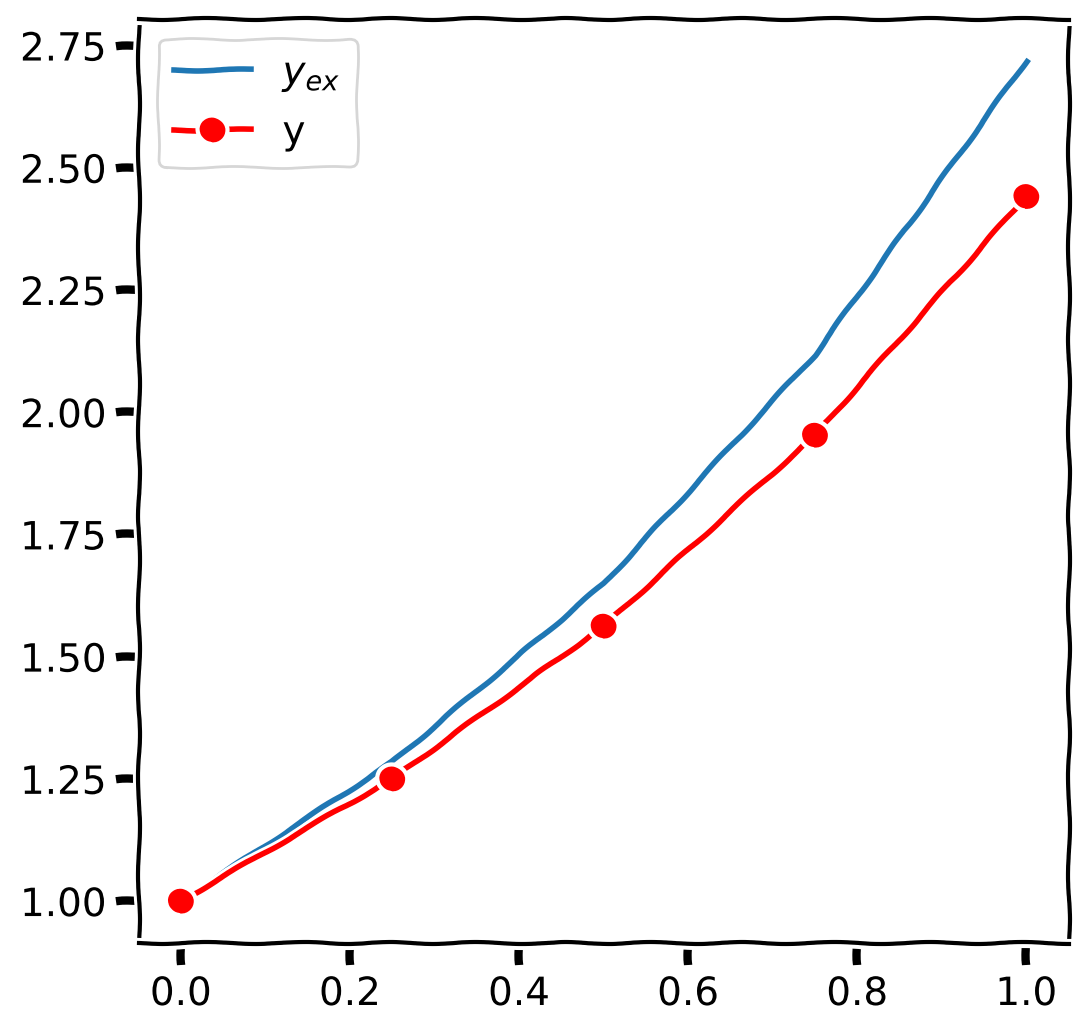

Let’s test Euler’s method with the simple IVP given in Example Example 1: Population growth and decay processes.

t0, T = 0, 1
y0 = 1
lam = 1
Nmax = 4

# rhs of IVP
f = lambda t, y: lam * y

# Compute numerical solution using Euler
ts, ys_eul = explicit_euler(y0, t0, T, f, Nmax)

# Exact solution to compare against
y_ex = lambda t: y0 * np.exp(lam * (t - t0))
ys_ex = y_ex(ts)

# Plot it
plt.plot(ts, ys_ex)
plt.plot(ts, ys_eul, "ro-")
plt.legend(["$y_{ex}$", "y"])

<matplotlib.legend.Legend at 0x7ff0a4955ee0>
