15. Advection pystencils example

import numpy as np
import pystencils as ps
import sympy as sp
from pystencils import plot as plt

domain_size = (200, 80)
dim = len(domain_size)

# create arrays
c_arr = np.zeros(domain_size)
v_arr = np.zeros(domain_size + (dim,))

# create fields
c, v, c_next = ps.fields("c, v(2), c_next: [2d]", c=c_arr, v=v_arr, c_next=c_arr)

# write down advection diffusion pde
# the equation is represented by a single term and an implicit "=0" is assumed.
adv_diff_pde = (
    ps.fd.transient(c) - ps.fd.diffusion(c, sp.Symbol("D")) + ps.fd.advection(c, v)
)
adv_diff_pde

\[\displaystyle \nabla \cdot(v c) - div(D \nabla c) + \partial_t c_{C}\]

discretize = ps.fd.Discretization2ndOrder(1, 0.01)
discretization = discretize(adv_diff_pde)
discretization.subs(sp.Symbol("D"), 1)

\[\displaystyle 0.96 {c}_{(0,0)} - 0.005 {c}_{(1,0)} {v}_{(1,0)}^{0} + 0.01 {c}_{(1,0)} - 0.005 {c}_{(0,1)} {v}_{(0,1)}^{1} + 0.01 {c}_{(0,1)} + 0.005 {c}_{(0,-1)} {v}_{(0,-1)}^{1} + 0.01 {c}_{(0,-1)} + 0.005 {c}_{(-1,0)} {v}_{(-1,0)}^{0} + 0.01 {c}_{(-1,0)}\]

ast = ps.create_kernel(
    [ps.Assignment(c_next.center(), discretization.subs(sp.Symbol("D"), 1))]
)
kernel = ast.compile()

y = np.linspace(0, 1, v_arr.shape[1])
v_arr[:, :, 0] = -y * (y - 1.0) * 5

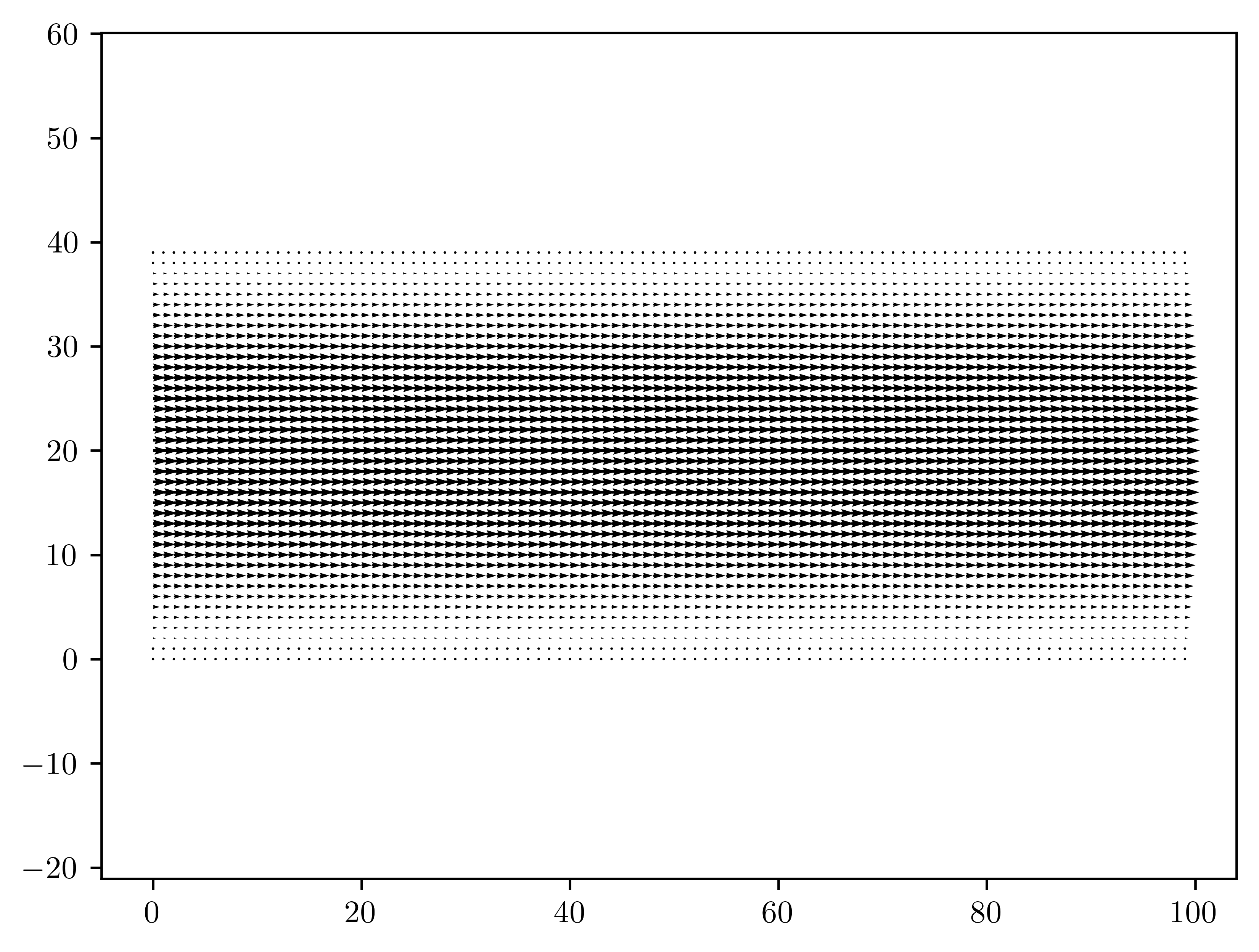

plt.vector_field(v_arr);

def boundary_handling(c):
    # No concentration at the upper, lower wall and the left inflow border
    c[:, 0] = 0
    c[:, -1] = 0
    c[0, :] = 0
    # At outflow border: neumann boundaries by copying last valid layer
    c[-1, :] = c[-2, :]

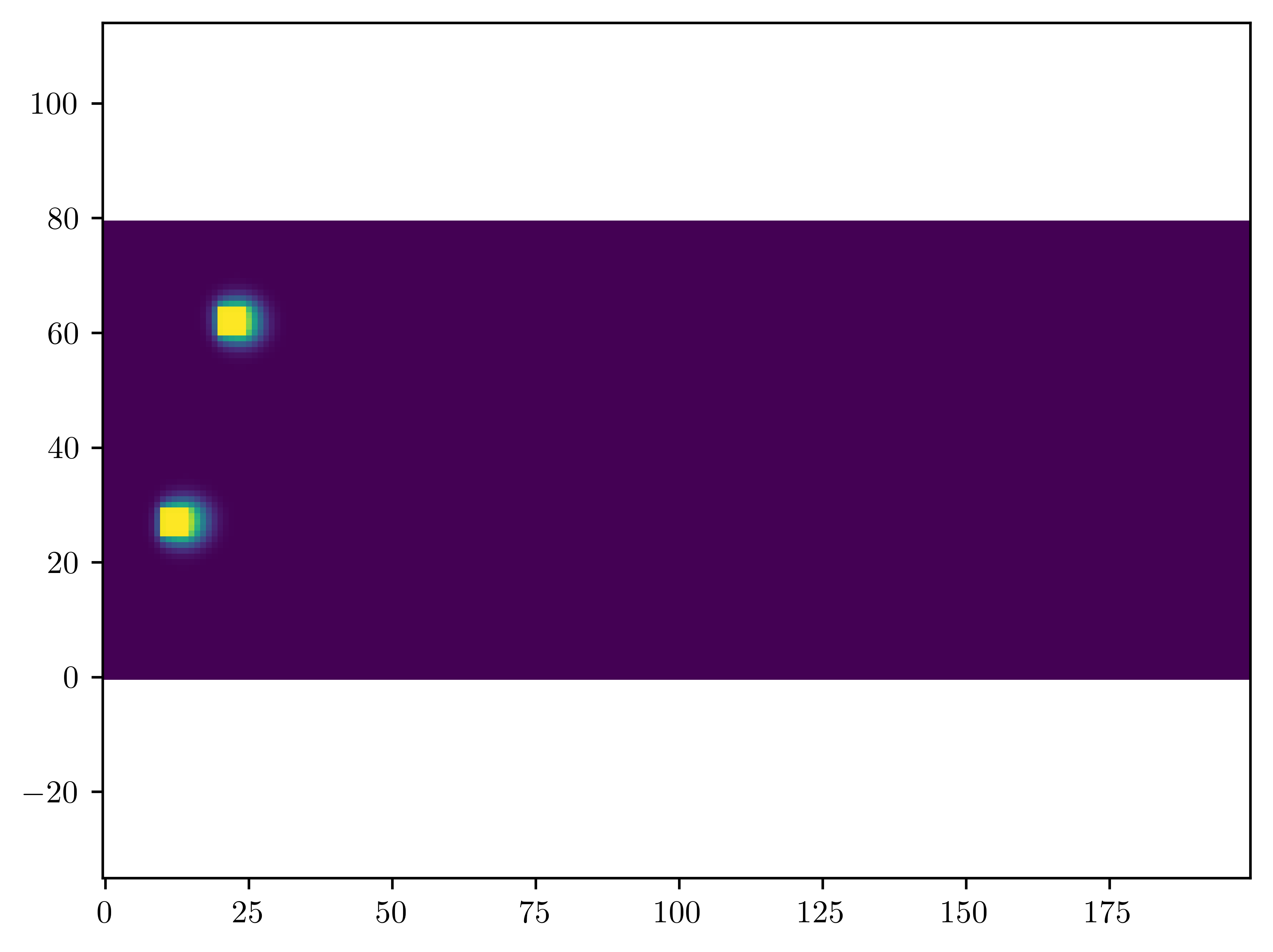

    # Some source inside the domain
    c[10:15, 25:30] = 1.0
    c[20:25, 60:65] = 1.0


c_tmp_arr = np.empty_like(c_arr)


def timeloop(steps=100):
    global c_arr, c_tmp_arr
    for i in range(steps):
        boundary_handling(c_arr)
        kernel(c=c_arr, c_next=c_tmp_arr, v=v_arr)
        c_arr, c_tmp_arr = c_tmp_arr, c_arr
    return c_arr

if "is_test_run" in globals():
    timeloop(10)
    result = None
else:
    ani = ps.plot.scalar_field_animation(timeloop, rescale=True, frames=300)
    # result = ps.jupyter.display_as_html_video(ani)

# result
